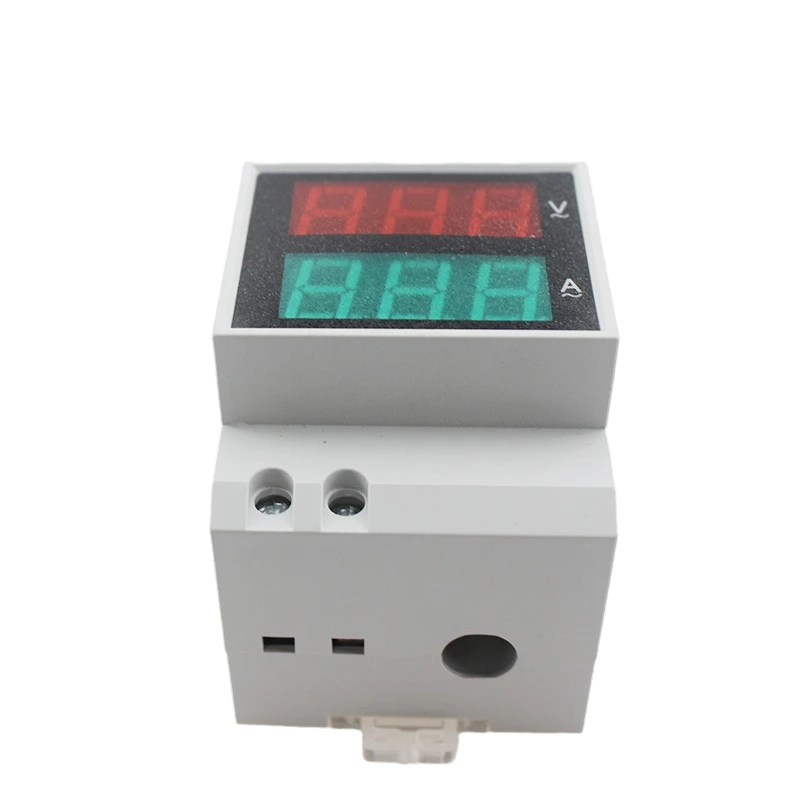

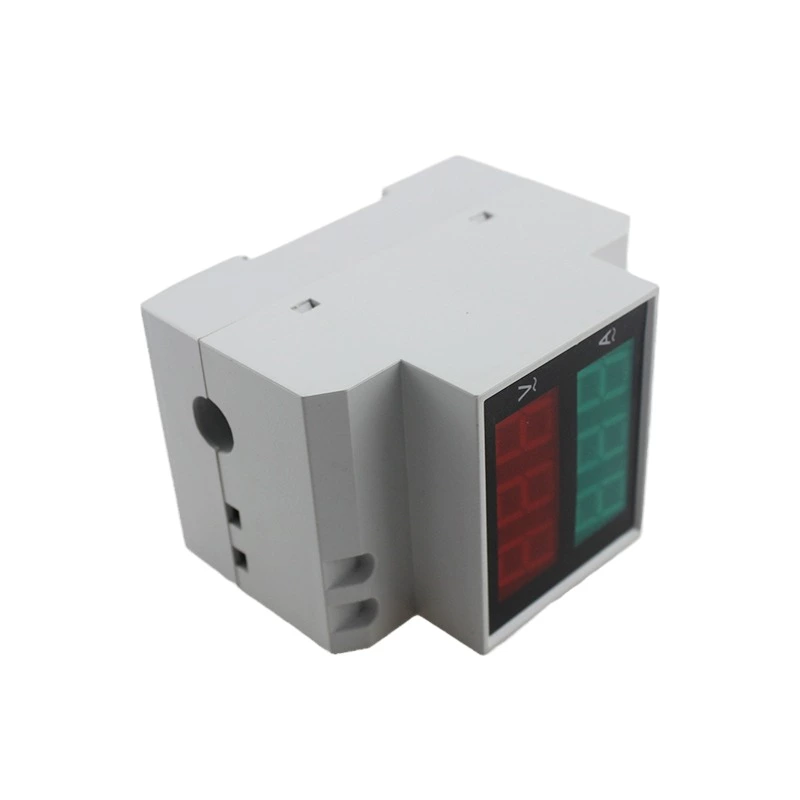

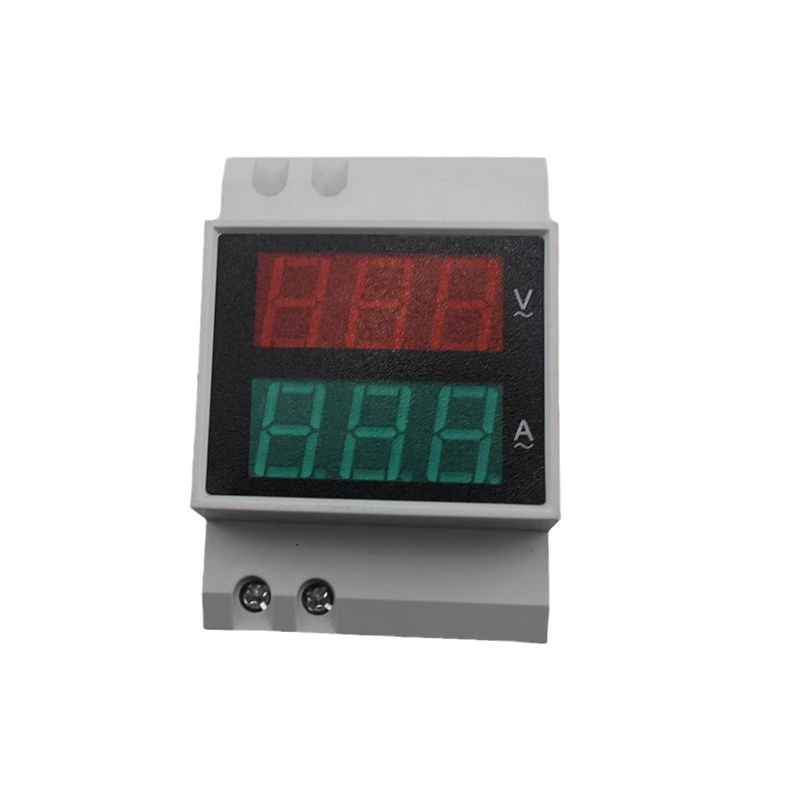

N52-2042 Din Rail Display meter
Technical Parameter
| Accuracy | 1% |
| Display mode | 0.5 inch LED digital tube |
| Range | AC voltage : 80~300V, 200~450V (You should select the one of measuring range in your order) |
| AC current: 0.1~99.9A (You should order current transformer when current is higher than 100A independent) | |
| Speed | 2 per second |
| Installation | Din-rail |
| Size | 54*80*64 mm |
Application Method
1. Connect the meauring voltage to the 1 and 2 terminal on the bottom left of meter.
2. Install current transformer as graph I.Connect the wires of secondary transformer to the terminal of3 and 4 on the meter surface. Make the measure wire across to the hole of current transformer.
3. If measuring current between 0.1 and 99.9A, see graph2, you can get current only making the wire across the hole on the b ottom of the meter, and the direction of insert do not impact the mea sure result.
