Feature:
Steel hubs are zinc plated.They are precision swaged by a lifetime crimp to unique double loop element made form ELASTACAST polyurethane.The hubs fix to sharts by metric set screws.Maximum operating temperature is 80ºC.
Specification:
High angular misalignment to 15 °
High axial and parallel misalignments
Slient in operation,torsionally soft
Dampens vibrations, increases bearing life
Maintenance-free,4000 hour rated life
Resistant to oils and solvents

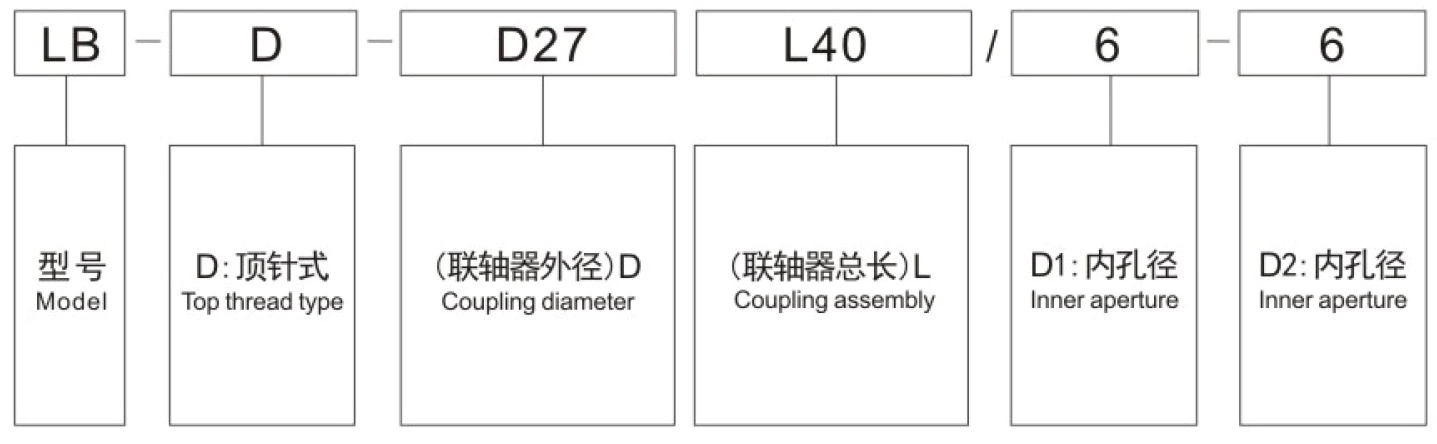

Model description:
Product size

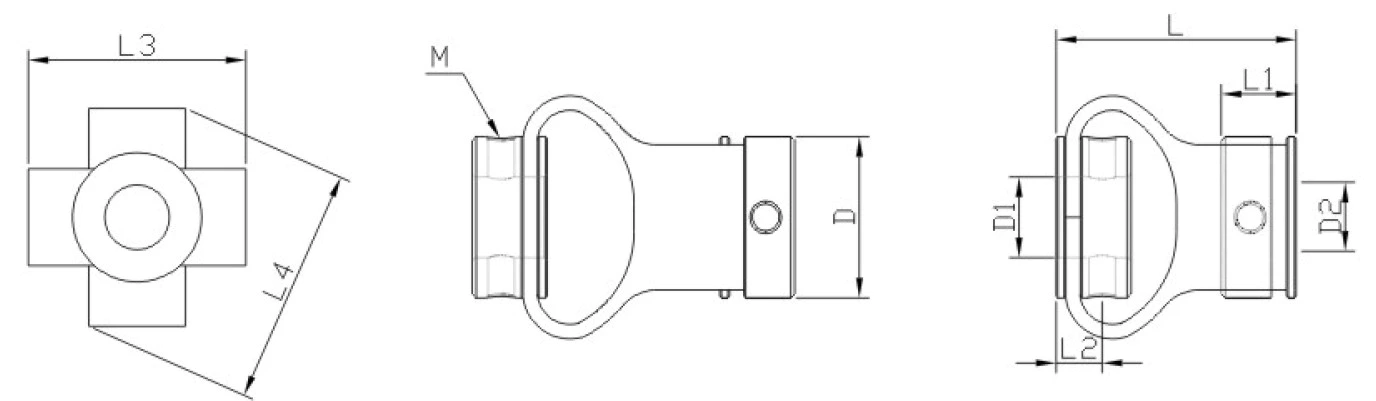

Size control table
| Proiect type | D (mm) | L (mm) | D1-D2 (mm) | M (mm) | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | Screw tightening torque(n.m) |
| LS-D-D23L24 | 16 | 24 | 3-8 | M3.0 | 8 | 5 | 23 | 27 | 1.2 |
| LS-D-D23L32 | 16 | 32 | 3-8 | M3.0 | 8 | 3 | 23 | 27 | 1.2 |
| LS-D-D27L30 | 20 | 30 | 4-11 | M4.0 | 10 | 6 | 28 | 32 | 2.5 |
| LS-D-D27L40 | 20 | 40 | 4-11 | M4.0 | 10 | 4 | 28 | 32 | 2.5 |
| LS-D-D40L50 | 26 | 50 | 5-14 | M5.0 | 14 | 9 | 45 | 50 | 5 |
| LS-D-D40L60 | 26 | 60 | 5-14 | M5.0 | 14 | 5 | 45 | 50 | 5 |
Technical parameter
| Proiect type | Maximum shaft hole (mm) | Rated torque (n.m) | Maximum torque (n.m) | Maximum speed (rpm) | Moment of inertia (Kg.m²) | Allow eccentricity (mm) | Allowable declination (°) |
| LS-D-D23L24 | 8 | 0.15 | 0.3 | 3000 | 2.5*10-7 | 1 | 5 |
| LS-D-D23L32 | 8 | 0.15 | 0.3 | 3000 | 5.8*10-7 | 2 | 6 |
| LS-D-D27L30 | 11 | 0.3 | 0.6 | 3000 | 1.8*10-6 | 1.5 | 6 |
| LS-D-D27L40 | 11 | 0.3 | 0.6 | 3000 | 4.7*10-6 | 2.5 | 10 |
| LS-D-D40L50 | 14 | 1.3 | 2.6 | 3000 | 1.1*10-5 | 3 | 8 |
| LS-D-D40L60 | 14 | 1.3 | 2.6 | 3000 | 2.3*10-5 | 3 | 12 |
