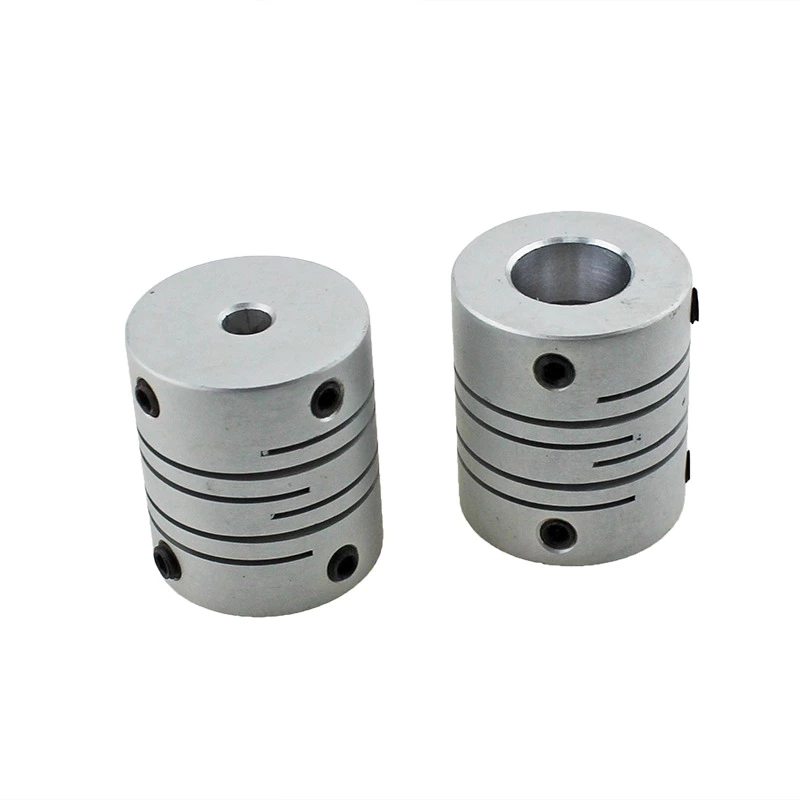

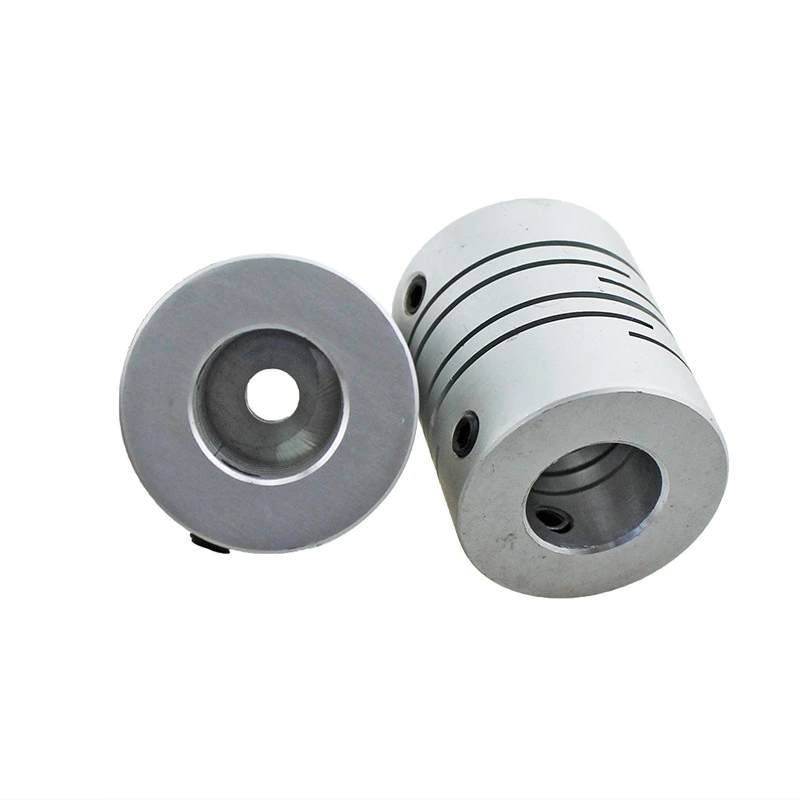

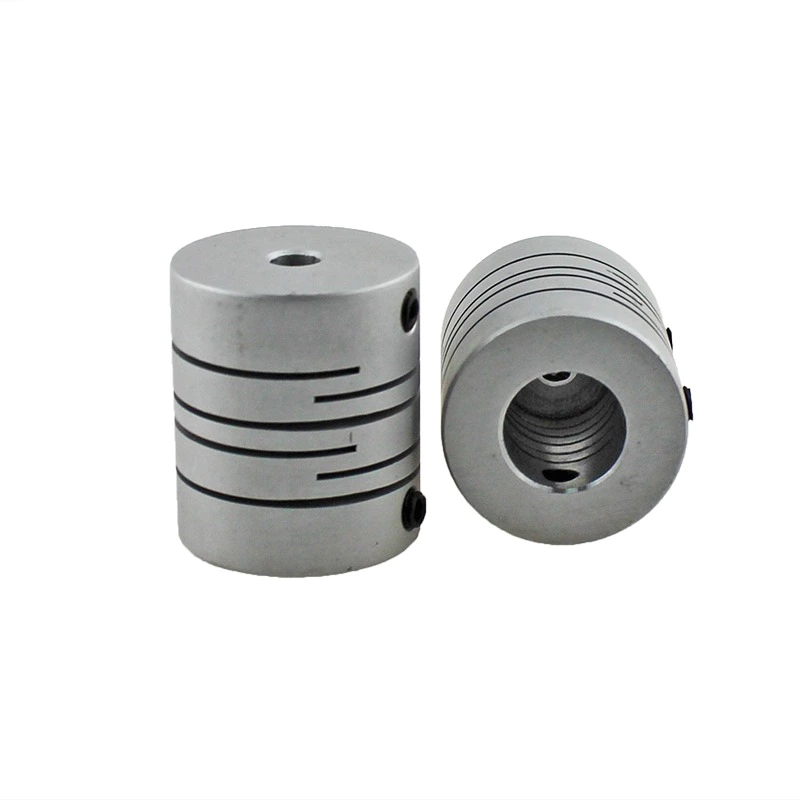

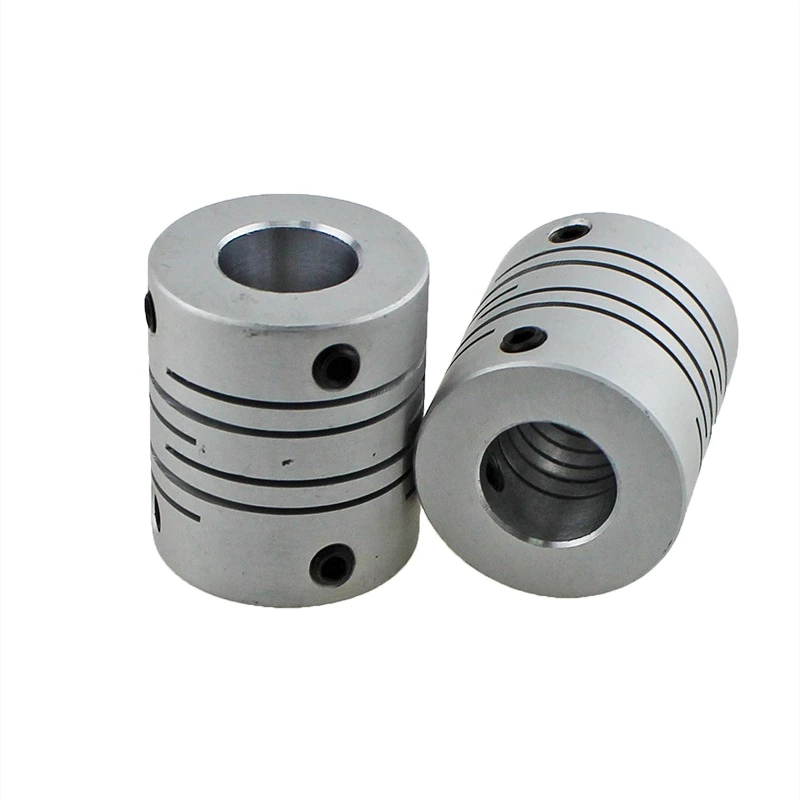

Product characteristics
Metal-wound coupling with slotted, fully integrated structure on the bar
High torsional rigidity and low moment of inertia
The highest strength super-hard aluminum in aluminum alloy
Slotted leaf springs allow for eccentricity, eccentricity, and axial misalignment

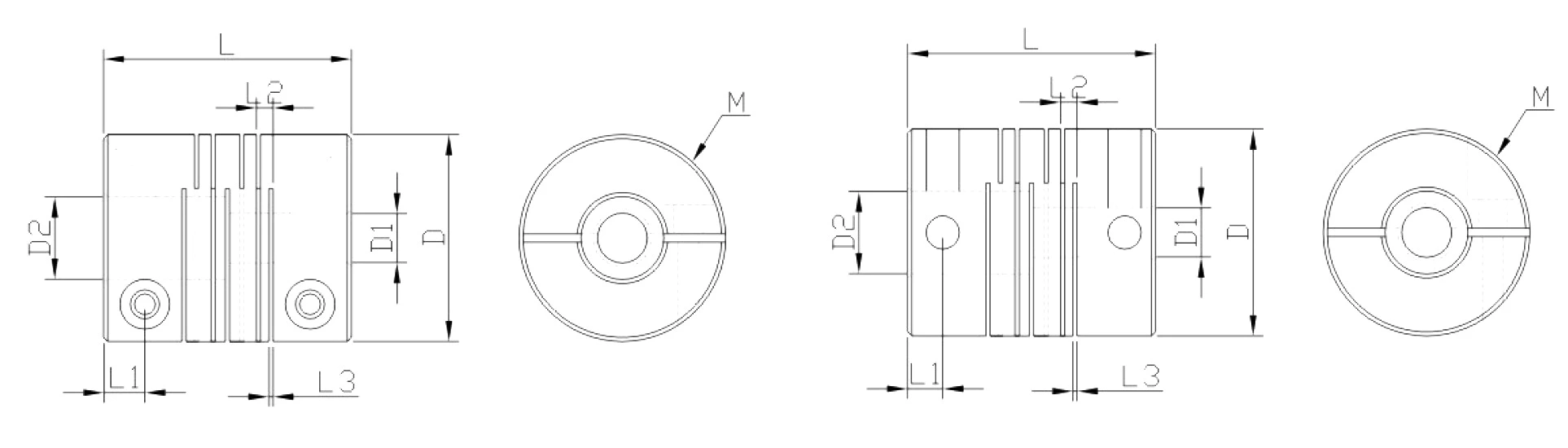

Product size
Size control table
| Proiect type | D (mm) | L (mm) | D1-D2 (mm) | M (mm) | L1 (mm) | L2 (mm) | L3 (mm) |
| LT-D-D15L20 | 15 | 20 | 4-5 | M3.0 | 0.5 | 1.5 | 3 |
| LT-D-D19L25 | 19 | 25 | 5-10 | M4.0 | 0.5 | 1.5 | 3 |
| LT-D-D25L30 | 25 | 30 | 6-12. 7 | M4.0 | 0.5 | 1.5 | 4 |
| LT-D-D30L35 | 30 | 35 | 8-18 | M5.0 | 0.5 | 1.5 | 5 |
| LT-D-D35L40 | 35 | 40 | 8-22 | M5.0 | 0.6 | 1.8 | 5 |
| LT-D-D40L45 | 40 | 45 | 10-28 | M6.0 | 0.6 | 1.8 | 6 |
Technical parameter
| Proiect type | Maximum shaft hole (mm) | Rated torque (n.m) | Maximum torque (n.m) | Maximum speed (rpm) | Moment of inertia (Kg.m²) | Allow eccentricity (mm) | Allowable declination (°) |
| LT-D-D15L20 | 5 | 0.5 | 1 | 30000 | 2.5*10-7 | 0.02 | 0.2 |
| LT-D-D19L25 | 10 | 1 | 2 | 25000 | 5.8*10-7 | 0.05 | 0.5 |
| LT-D-D25L30 | 12 | 1.5 | 3 | 18000 | 1.8*10-6 | 0.05 | 0.5 |
| LT-D-D30L35 | 19 | 2 | 4 | 16000 | 4.7*10-6 | 0.05 | 0.5 |
| LT-D-D35L40 | 22 | 3 | 6 | 14000 | 1.1*10-5 | 0.05 | 0.5 |
| LT-D-D40L45 | 28 | 6 | 12 | 12000 | 2.3*10-5 | 0.05 | 0.5 |
