DC5-24V Hollow Shaft Encoder with 512ppr And Reverse Signal
- Model:
- IHA1045-501G-512ABZ3-5-30T
DC5-24V hollow shaft encoder with 5 meter cable 512ppr and reverse signal
Application:
Used in area of automatic control, measurements, elevator, television, and printing and packing.
Features:
High reliability, long life, strong anti interference ability and wide range of temperature adaption.
Keyway fixation, easy to install and inner diameter changeable.

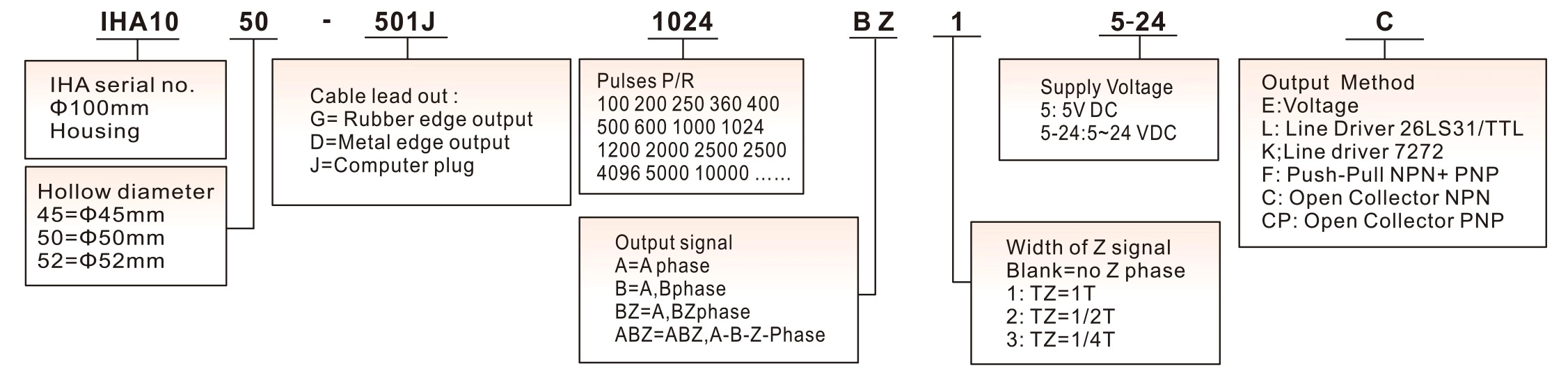

Ordering Information:
Note:
1.Please contact sales representative to confirm the correctness and availability of the part number;
2.Line Driver is only available with 5V DC.
Technical Specifications
| Electrical Specification | ||||
| Output circuit | Open collector | Voltage output | Push pull output | Line driver output |
| Power Vcc | 5~30 | 5~30 | 5±0.25 5~30 | 5±0.25 5~30 |
| Current | ≤80mA | ≤80mA | ≤80mA | ≤150mA |
| Load current | 40mA | 40mA | 40mA | 60mA |
| High-level output | Min Vcc*70% | Min Vcc-2.5V | Min Vcc-1.5V | Min 3.4V |
| Low-level output | Max 0.4V | Max 0.4V | Max 0.8V | Max 0.4V |
| Rise Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
| Fall Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
| Max Responding Frequency | 300kHz | 300kHz | 300kHz | 300kHz |
| Mechanical Specification | ||||
| Max speed(r/min) | Starting Torque | Max. Shaft Loading | Shocking | Vibration |
| 5000 | <1Nm | Radial:20N, Axial:10N | 50G/11-ms | 10G 10-2000Hz |
| Rotor Inertia | Working Temperature | Storage Temperature | Protection Grade | Weight |
| 4*10-8Kgm2 | -30~85℃ | -35~95℃ | IP50 | 550g |
Connection Table
| Signal | A | B | Z | ā | B(-) | Z(-) | Vcc | GND | Block |
| Color | Green | White | Yellow | Brown | Gray | Orange | Red | Black | Copper Web |
| DB15 plug | 4 | 2 | 9 | 7 | 5 | 8 | |||
| DB15 plug | 5 | 3 | 2 | 7 | 6 | 8 | 1 | 4 | 9 |

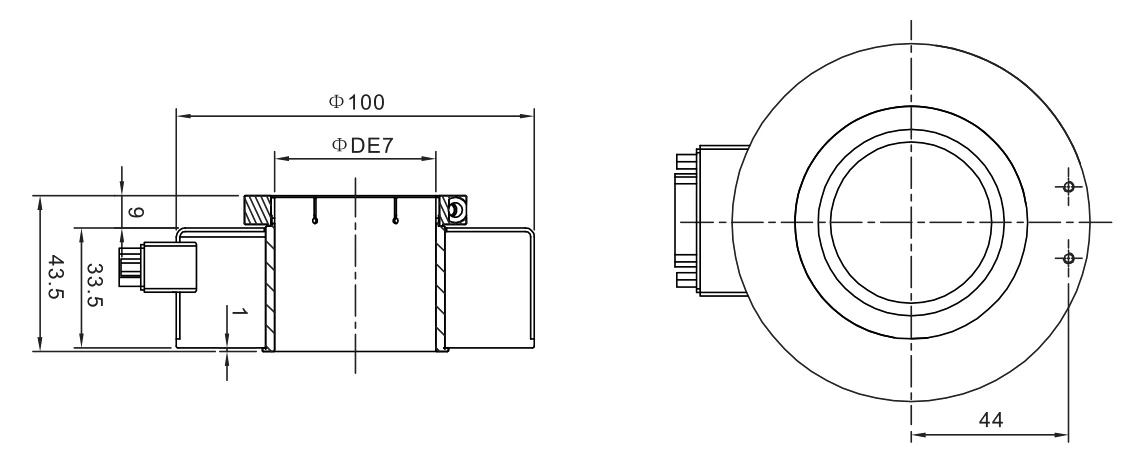

Dimensions (mm)

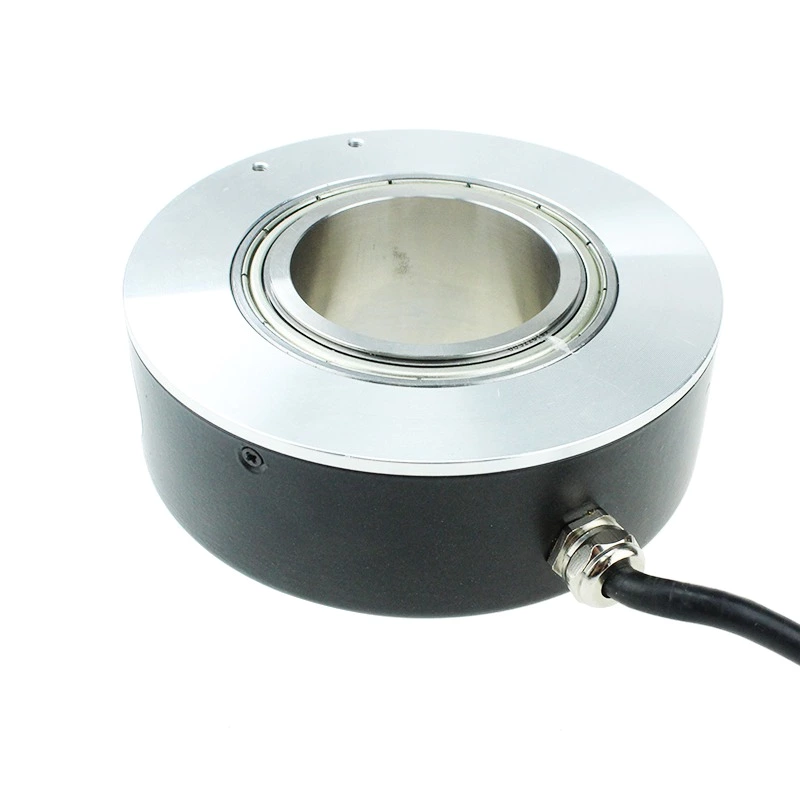

Product Pictures
