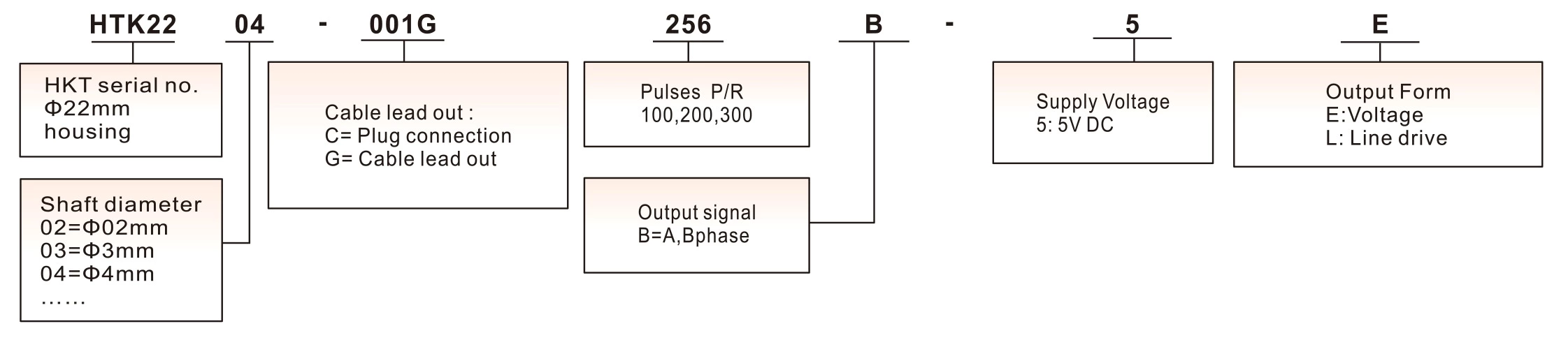

◆Note
1. Please contact sales representative to confirm the correctness and availability of the part number
2. Line drive is only available with 5VDC option.
◆Feature
Matrix reading, with high impact resistance, strength capability to error correction high reliability, and installation sizes small, wide range of resolution, do not require the signal conditioning. Assembly requirements are less, and has compensation ability of motor shaft radial and axial shifting, widely used in the DC motor, with a multi-aperture for selection.
2 channels quadrature output, quick and easy assembly
◆Technical Specification
| Electrical Specification | ||||
| Output circuit | Voltage output | |||
| Power Vcc | 5VDC | |||
| Current Consumption | <=35mA | |||
| High-level output | Min Vcc*85% | |||
| Low-level output | Max 0.3V | |||
| Rise Time Tr | Max 200ns | |||
| Fall Time Tr | Max 50ns | |||
| Mechanical Specification | ||||
| Max speed(r/min) | Starting Torque | Max. Shaft Loading | Shocking | Vibration |
| 12000 | <0.05Nm | Radial;25N, Axial:15N | 50G/11ms | 10G 10-2000Hz |
| Rotor Intertia | Working Temperature | Storage Temperature | Protection Grade | Weight |
| 4*10（-8） kgm² | -40~85℃ | -40~85℃ | IP50 | 100g |
◆Connection Table
| Voltage output | 0V | Nc | B | Vcc | A |
| Cable Code | 1 | 2 | 3 | 4 | 5 |

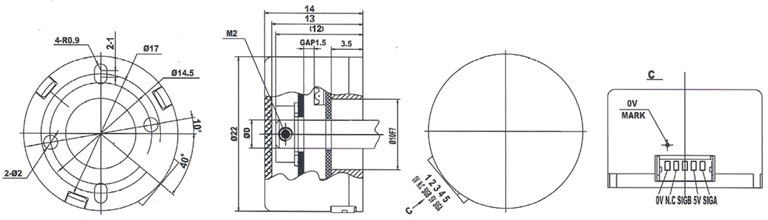

◆Diamension
