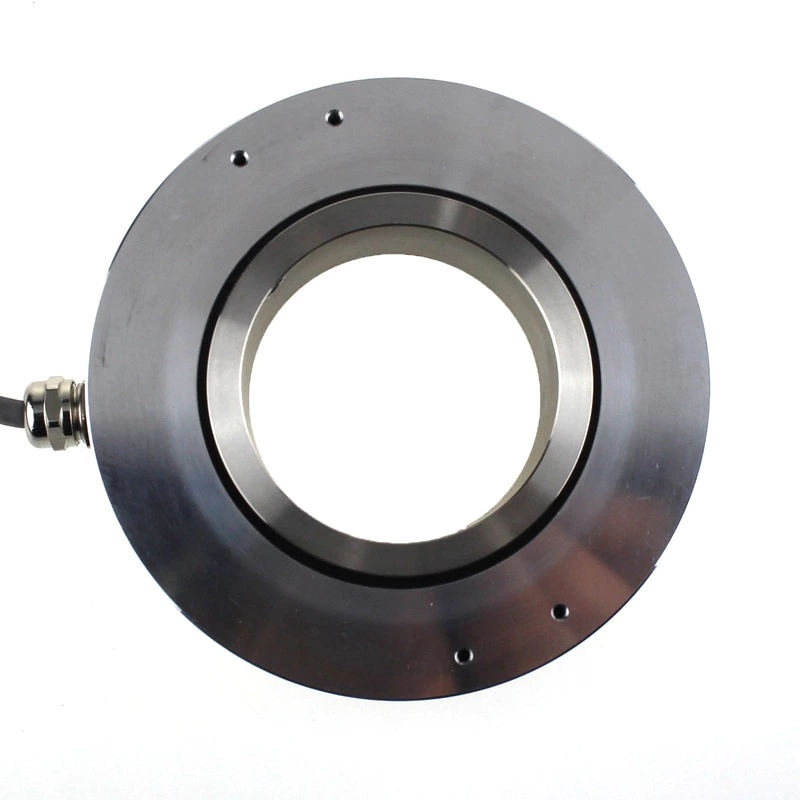

IHA12060 Outer Diameter 120mm hollow shaft encoder

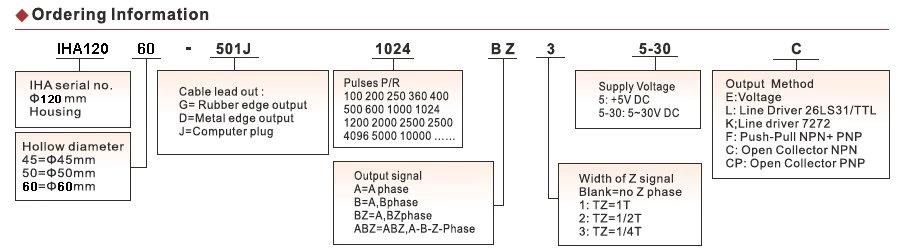

Model:: IHA12060-001G-8192BZ3-5L

Inquiry

IHA12060 Outer Diameter 120mm hollow shaft encoder

Description

IHA12060 Outer Diameter 120mm hollow shaft encoder

Note
1, Please contact sales representative to confirm the correctness and availability of the part number
2, Line Driver is only available with 5-30V DC option

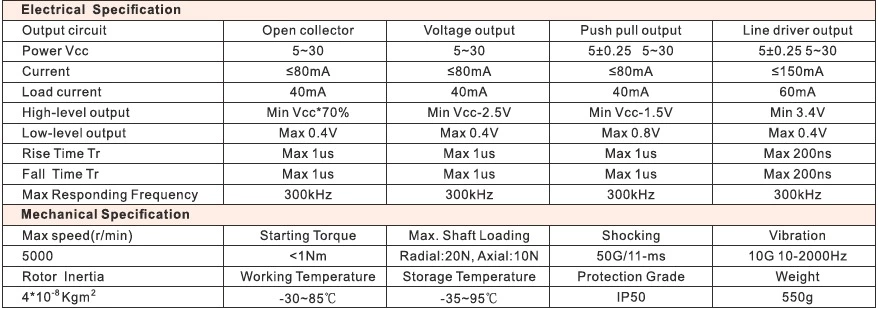

Technical Specifications

IHA12060 Outer Diameter 120mm hollow shaft encoder
Connection Table

IHA12060 Outer Diameter 120mm hollow shaft encoder

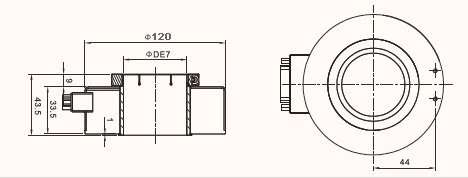

Dimension

IHA12060 Outer Diameter 120mm hollow shaft encoder

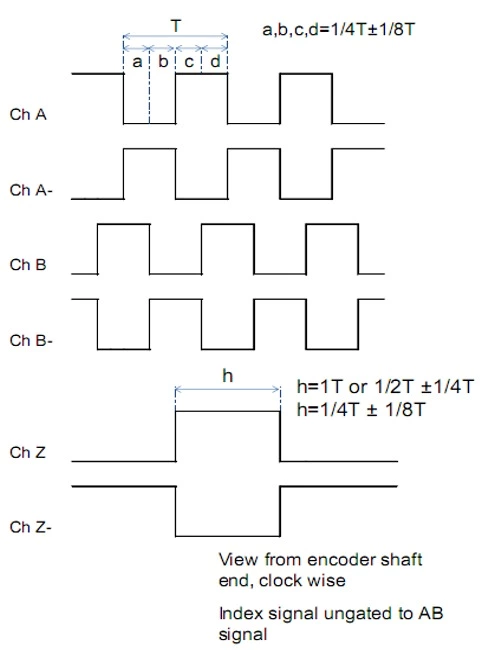

Output Waveform

IHA12060 Outer Diameter 120mm hollow shaft encoder
