◆Feature
Matrix reading, with high impact resistance, strength capability to error correction high reliability, and installation sizes small, wide range of resolution, do not require the signal conditioning. Assembly requirements are less, and has compensation ability of motor shaft radial and axial shifting, widely used in the DC motor, with a multi-aperture for selection.
◆Note
1, Please contact sales representative to confirm the correctness and availability of the part number
◆Technical Specification
| Parameter | Value | Note |
| Supply Voltage |
DC5V (±10%) |
Max. response frequency is gated by max. rotation speed |
| Max. Response Frequency | 30Hz | |
| Max. Rotation Speed (*1) | 3000 rpm | |
| Max. Current Consumption | 120mA (Unloaded) | |
| Max. Rise-Fall Time | 1us | |
| Operating Temperature | -20 ~ 85° C (unfrozen) | |
| Storage Temperature | -20 ~ 85° C (unfrozen) |
◆Electrical spec
| voltage | Output signal | Current consumption | Output waveform | Rise time Tr | Fall time Tf | Response frequency | Insulation Resistance | |
| 5V 7-12V | High level | Low level | <65mA no-load | Square | 200ns | 50ns | 0-10kHz | >100Ω |
| ≥85%Vcc | ≤0.3 | |||||||
◆Mechanical spec
| Max speed r/min | Starting torque | Axis maximum load | Impact | Anti-vibration |
| 6000 | <0.05Nm | Radial 25 N Axial 15N | 50G/11ms | 10G 10-2000Hz |
| Moment intertia | Work Temperature | Storage Temperature | Protection Degree | Weight |
| 4×10.-8kgm2 | -40~85ºC | -40~85ºC | IP50 | 100g |
◆Connection Table
| Line Driver | 0V | NC | B | Vcc | A |
| Ribbon Cable | Color | 2 | 3 | 4 | 5 |

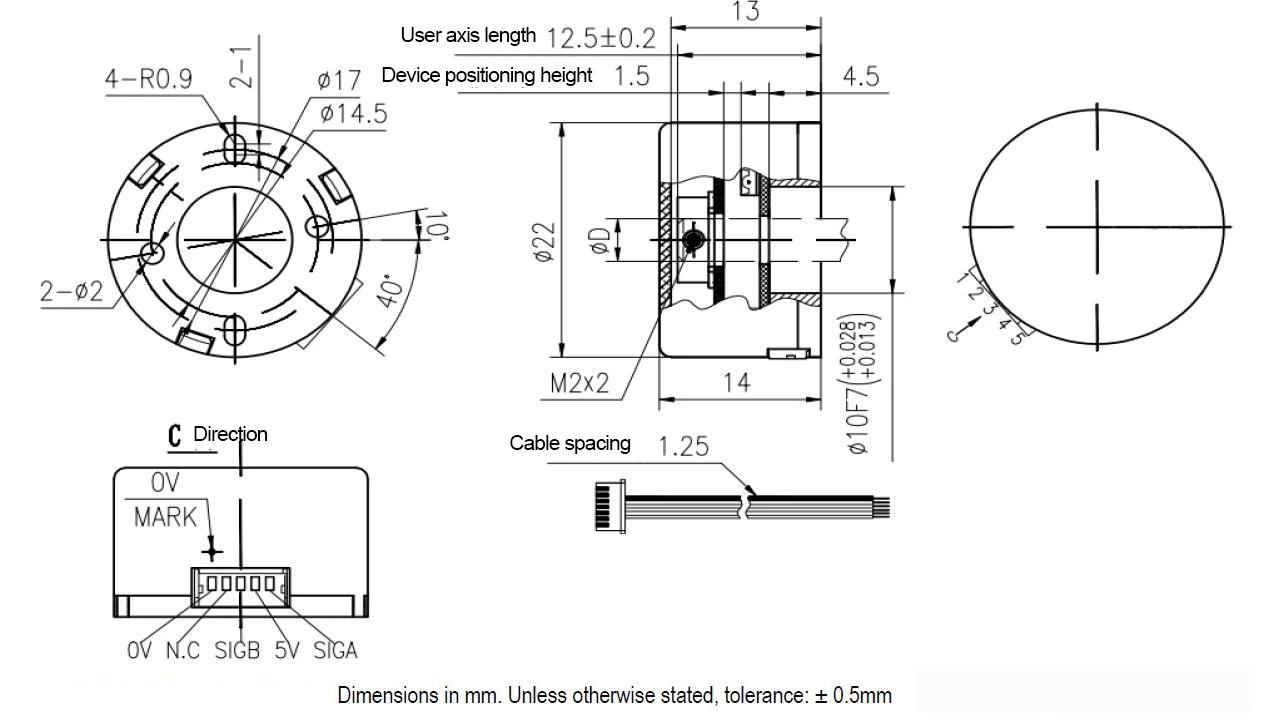

◆Diamension
