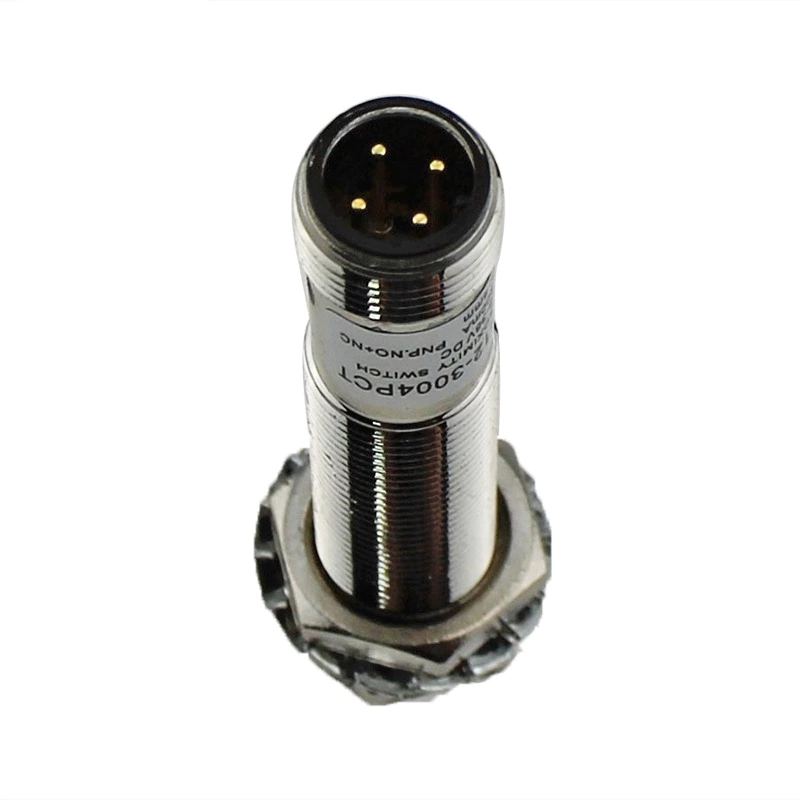

LM12-3004PCT 4mm Detect Range Inductive Proximity Sensor for Location Detection

Working principle inductive proximity switch

Inductive proximity switch is composed of three parts: oscillator, switch circuit and magnified output circuit. The oscillator will generate an alternating electric field. When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop. The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign, triggering driving con-contact detection.

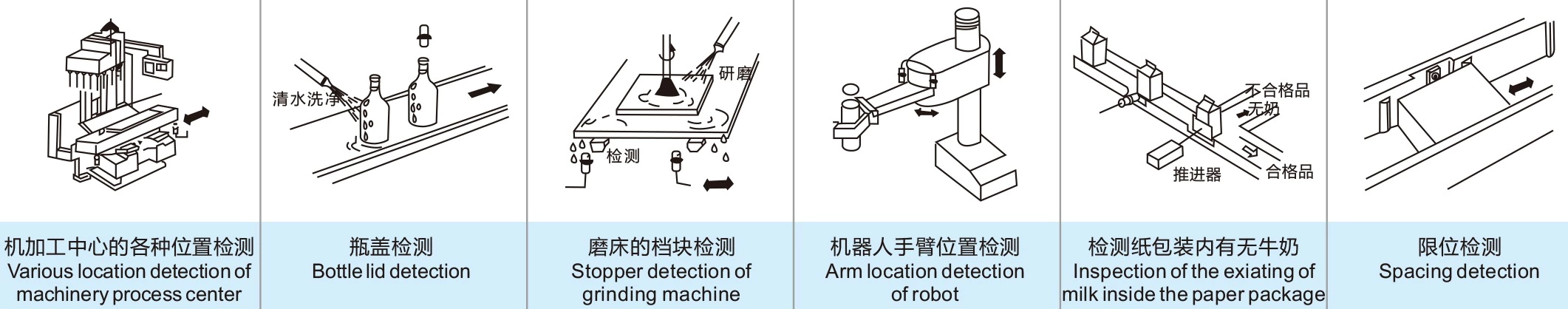

 Application illustration of proximity switch

Technical Specifications

Structural category				Connector type

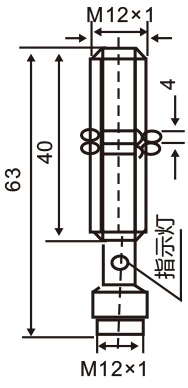

Overall dimensions
Outward Appearance code				LM12
DETECTION DISTANCE				2mm
Flush	10-30 VDC     90-250 VAC	NPN	NO	LM12 3002NAT
			NC	LM12-3002NBT
			NO+NC	LM12-3002NCT
		PNP	NO	LM12-3002PAT
			NC	LM12-3002PBT
			NO+NC	LM12-3002PCT
		two wiresystem	NO	LM12-3002LAT
			NC	LM12-3002LBT
		SCR	NO	LM12-2002AT
			NC	LM12-2002BT
DETECTION DISTANCE				4mm
Non-Flush	10-30 VDC       90-250 VAC	NPN	NO	LM12 3004NAT
			NC	LM12-3004NBT
			NO+NC	LM12-3004NCT
		PNP	NO	LM12-3004PAT
			NC	LM12-3004PBT
			NO+NC	LM12-3004PCT
		two wiresystem	NO	LM12-3004LAT
			NC	LM12-3004LBT
		SCR	NO	LM12-2004AT
			NC	LM12-2004BT
Output current				200mA
Output voltage dropDC/AC				DC≤3V  AC≤10V
Consumption current				DC≤15mA AC≤10mA
Standard detected object				12*12*1(A3 iron)
Repeated precision				0.01
DC/AC Response frequency				400Hz/10Hz
Working environment temperature				–25℃~70℃
Insulation resistance				50MΩ
Shell material				Metal
Protection grade				IP67
