Working principle inductive proximity switch
Inductive proximity switch is composed of three parts: oscillator, switch circuit and magnified output circuit. The oscillator will generate an alternating electric field. When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop. The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign, triggering driving con-contact detection.
Application illustration of proximity switch
 |
 |
 |
 |
 |
 |

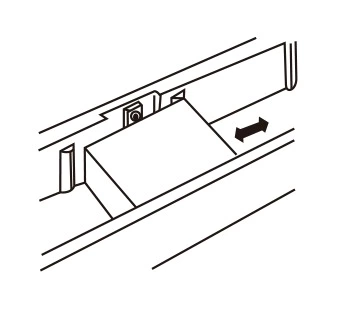

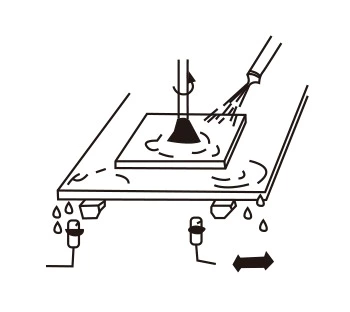

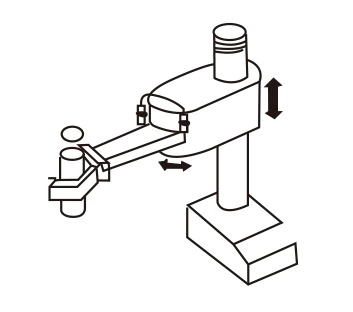

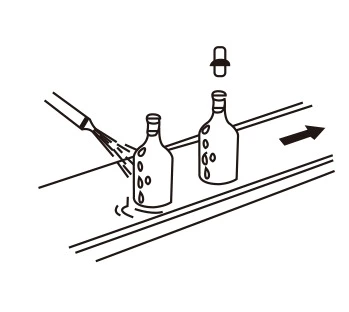

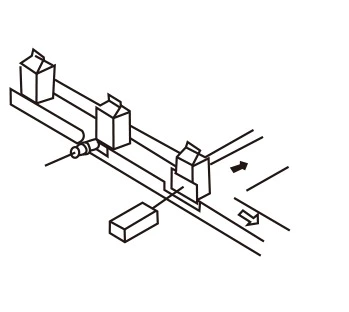

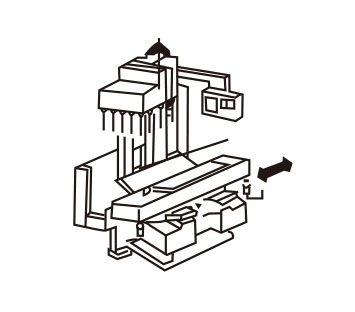

| Various location detection of machinery process center | Bottle lid detection | Stopper detection of grinding machine | Arm location detection of robot | Inspection of the exiating of milk inside the paper package | Spacing detection |
| Model NO. | LM18-3005NA |
| Supply voltage | 10-30VDC |
| Output form | NPN output |
| Output state | NO |
| Installation | Flush |
| Output current | 200mA |
| Protection grade | IEC standard IP54 |
| Response frequency | 200Hz/25Hz |
| Detectable object | Conductor and dielectric body |
