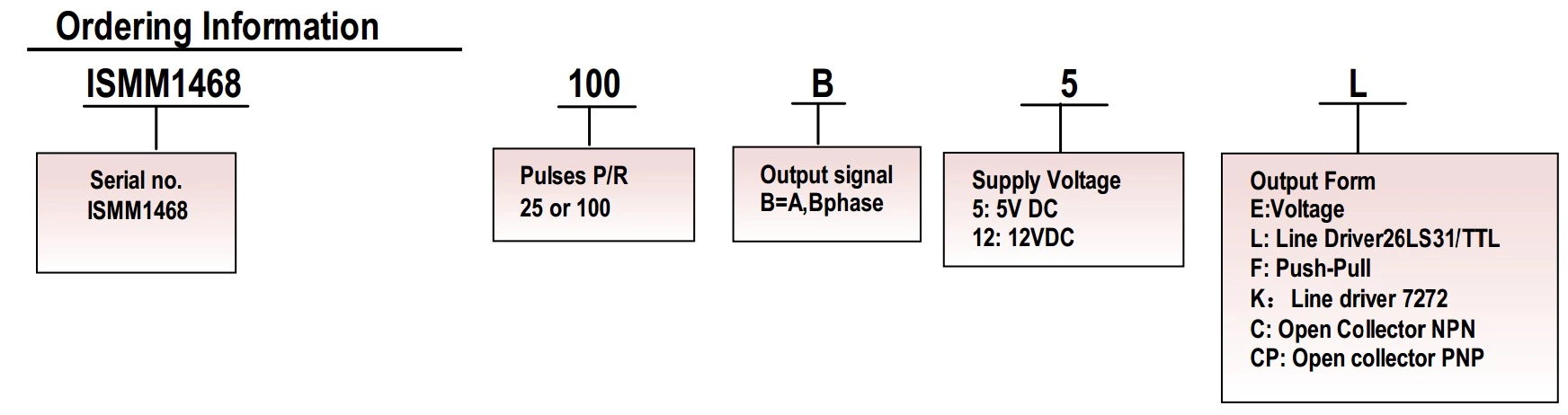

ISMM1468-002-100B-5L Manual Encoder for CNC Machine Tool Hand Wheel Encoder
- Model:
- ISMM1468-002-100-B-5-L
Note:
1, Please contact sales representative to confirm the correctness and availability of the part number
2, Line Driver is only available with 5VDC,12VDC option
Technical Specifications
| Electrical Specification | ||||
| Output circuit | Open collector | Voltage output | Push pull output | Line driver output |
| Power Vcc | 5~30 | 5~30 | 5±0.25 5~30 | 5±0.2512V |
| Current | ≤100mA | ≤100mA | ≤100mA | ≤120mA |
| Load current | 40mA | 40mA | 40mA | 60mA |
| High-level output | Min Vcc*70% | Min Vcc-2.5V | Min Vcc-1.5V | Min 3.4V |
| Low-level output | Max 0.4V | Max 0.4V | Max 0.8V | Max 0.4V |
| Rise Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
| Fall Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
| Max Responding Frequency | 20kHz | 20kHz | 20kHz | 20kHz |
| Mechanical Specification | ||||
| Max speed(r/min) | Working Temperature | Storage Temperature | Protection Grade | Weight |
| 600 | -25~70℃ | -25~85℃ | IP50 | 750g |

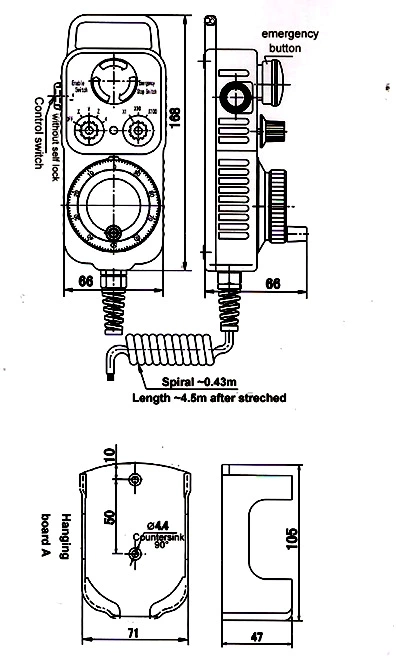

Dimensions(mm)

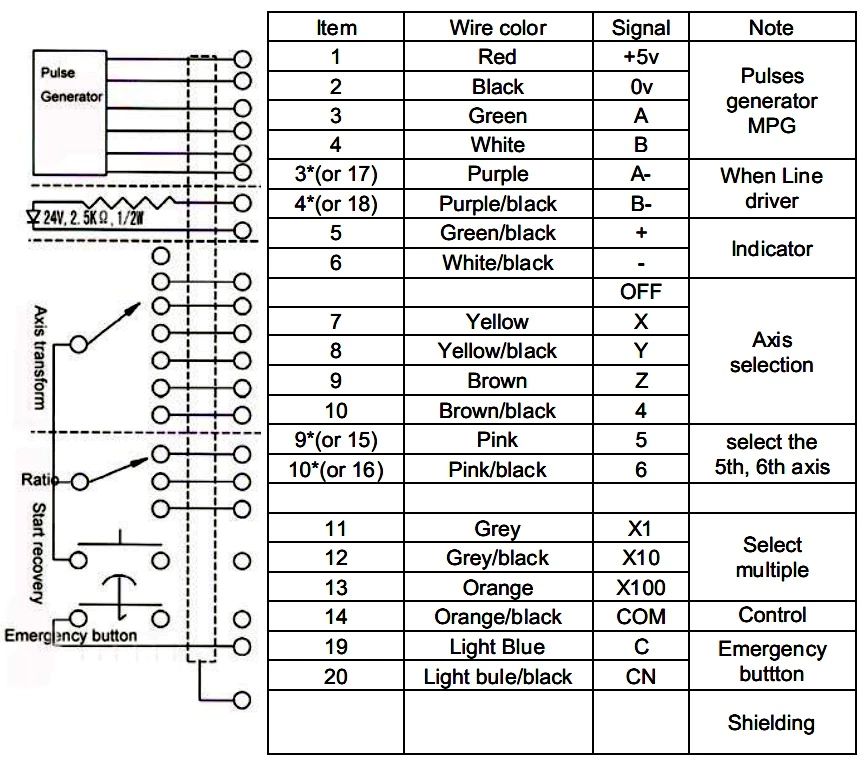

Connection Table
