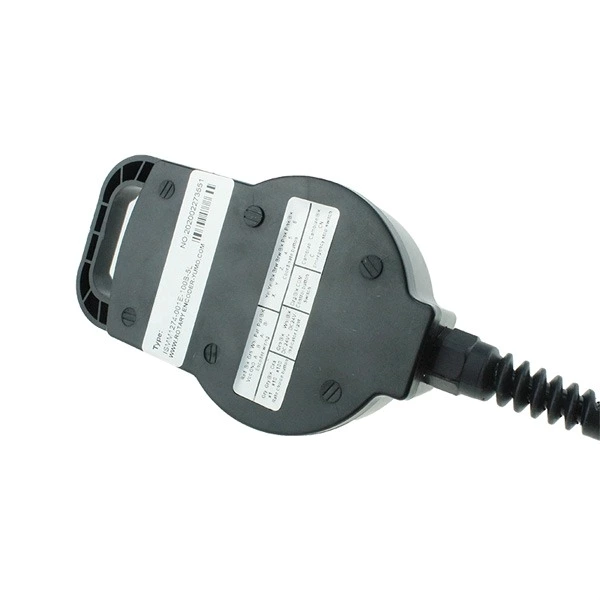

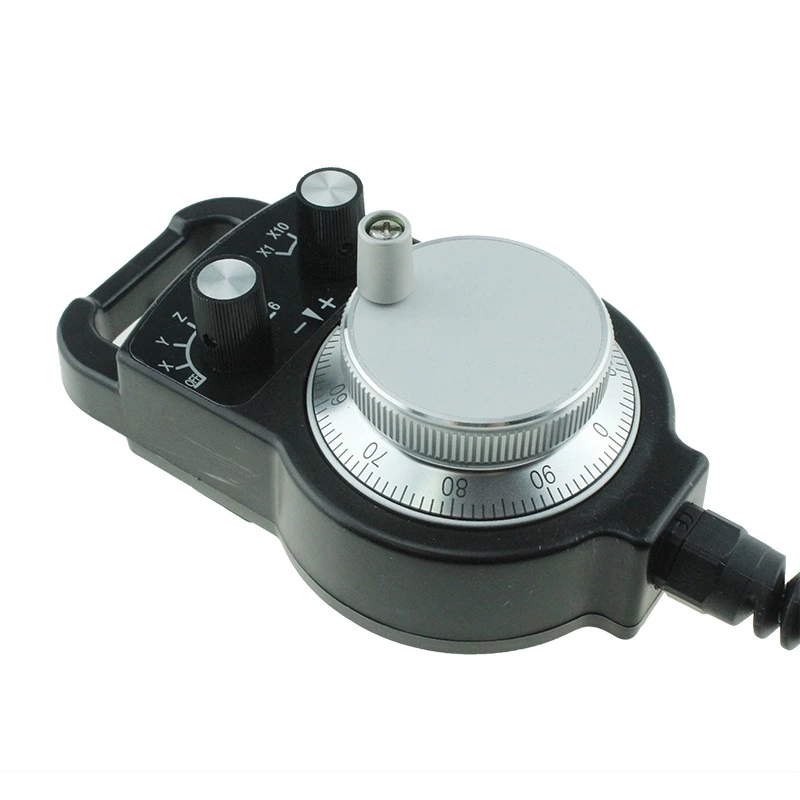

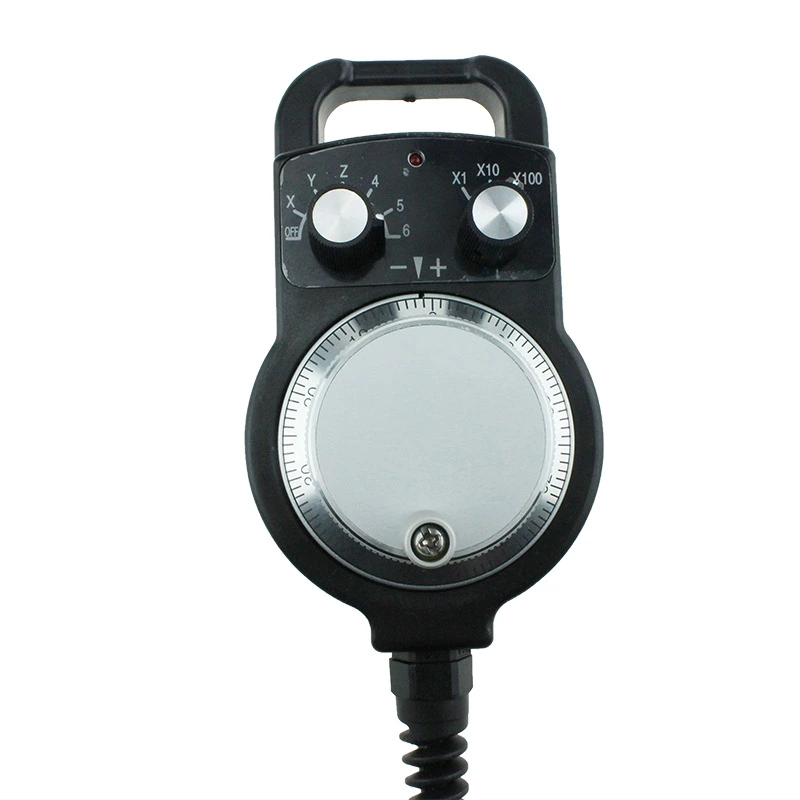

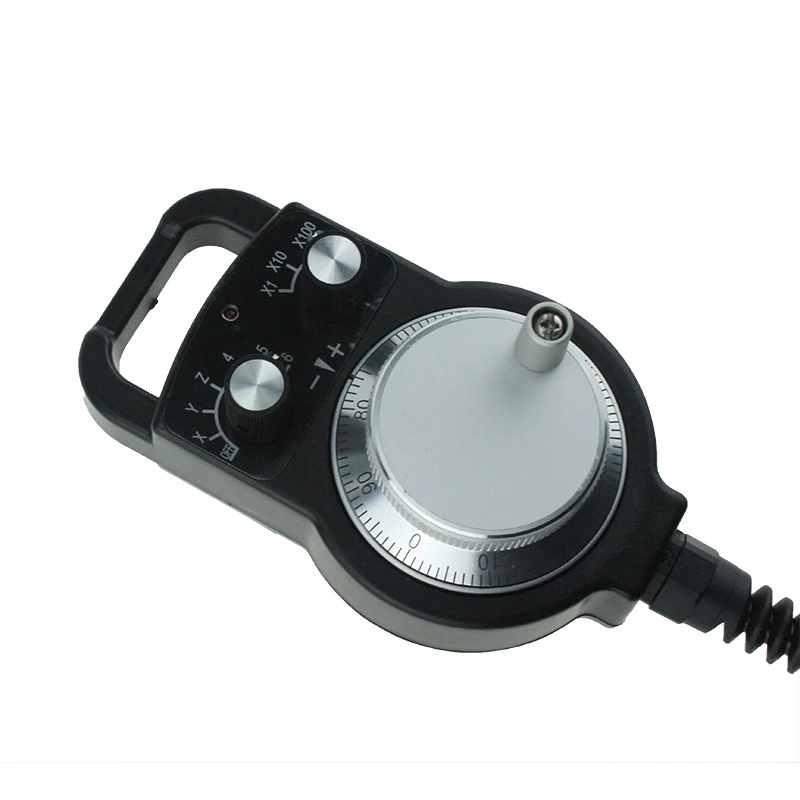

ISMM1274 100ppr Hand Wheel Encoder Manual Pulse Generator for Cnc Machine MPG
- Model:
- ISMM1274-001E-100B-5L
Application
-
Industrial tolling machinery , zero correction of printing machinery or signal cutting,numerical control machine or signal dividing.
Features
-
Suitable for manual pulses input type such as CNC or milling machine.
-
Plastic case, high electrical resistance. Shaft switching trigger, oil sealed design

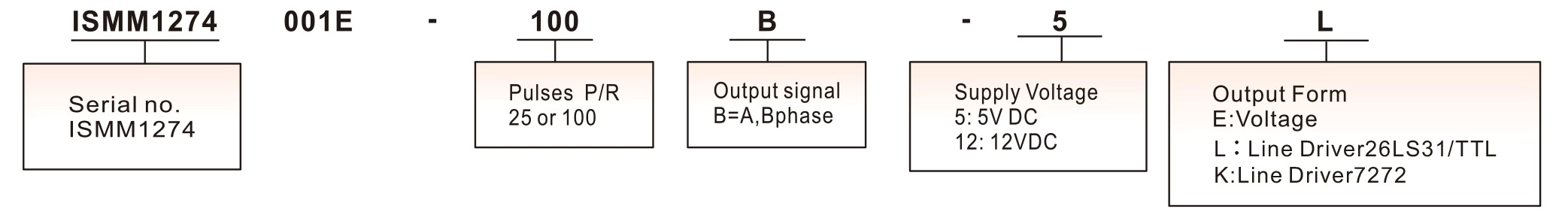

Ordering Information
Note:
-
Please contact sales representative to confirm the correctness and availability of the part number
-
Line Driver is only available with 5V DC, 12VDC option
Technical Specifications
| Electrical Specification | ||||
| Output circuit | Open collector | Voltage output | Push pull output | Line driver output |
| Power Vcc | 5~30 | 5~30 | 5±0.25 5~30 | 5±0.25 12V |
| Current | ≤100mA | ≤100mA | ≤100mA | ≤120mA |
| Load current | 40mA | 40mA | 40mA | 60mA |
| High-level output | Min Vcc*70% | Min Vcc-2.5V | Min Vcc-1.5V | Min 3.4V |
| Low-level output | Max 0.4V | Max 0.4V | Max 0.8V | Max 0.4V |
| Rise Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
| Fall Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
| Max Responding Frequency | 20kHz | 20kHz | 20kHz | 20kHz |
| Mechanical Specification | ||||
| Max speed(r/min) | Working Temperature | Storage Temperature | Protection Grade | Weight |
| 600 | -25~70℃ | -30~85℃ | IP50 | 750g |

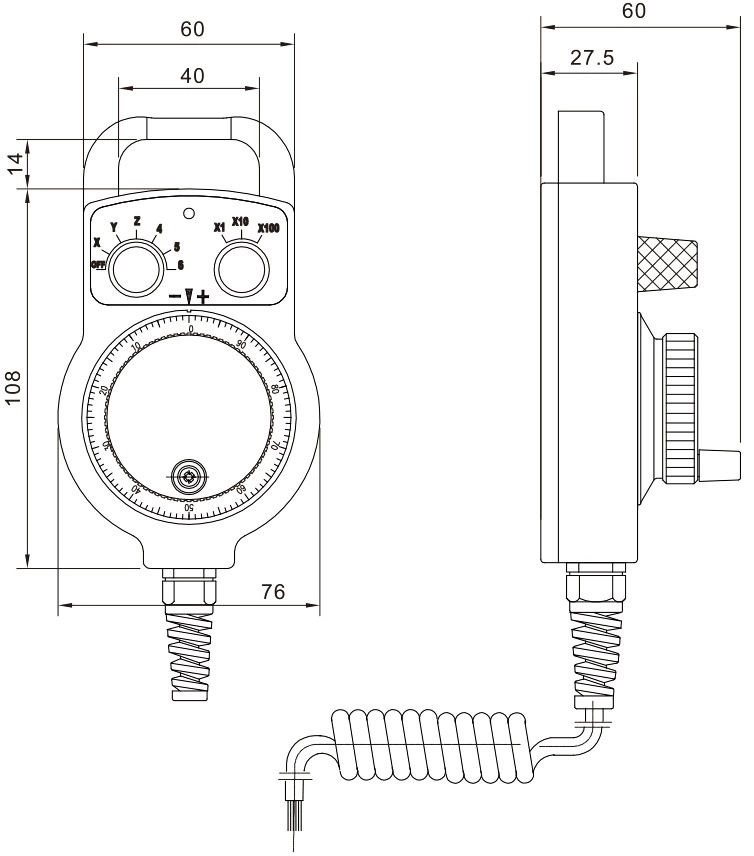

Dimensions(mm)

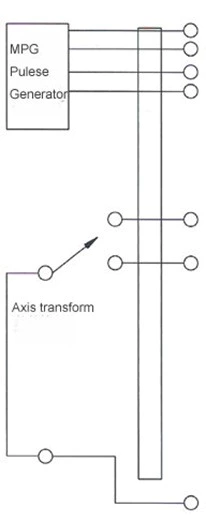

Connection Table
| Item | Wire color | Signal | Note | |
 |
1 | Red | +5v | Pulses generator MPG |
| 2 | Black | 0v | ||
| 3 | Yellow | A | ||
| 4 | White | B | ||
| 5 | Green | X | Axis selection | |
| 6 | Brown | Z | ||
| 7 | Light Bule | Com-OFF | ||
