◆Note

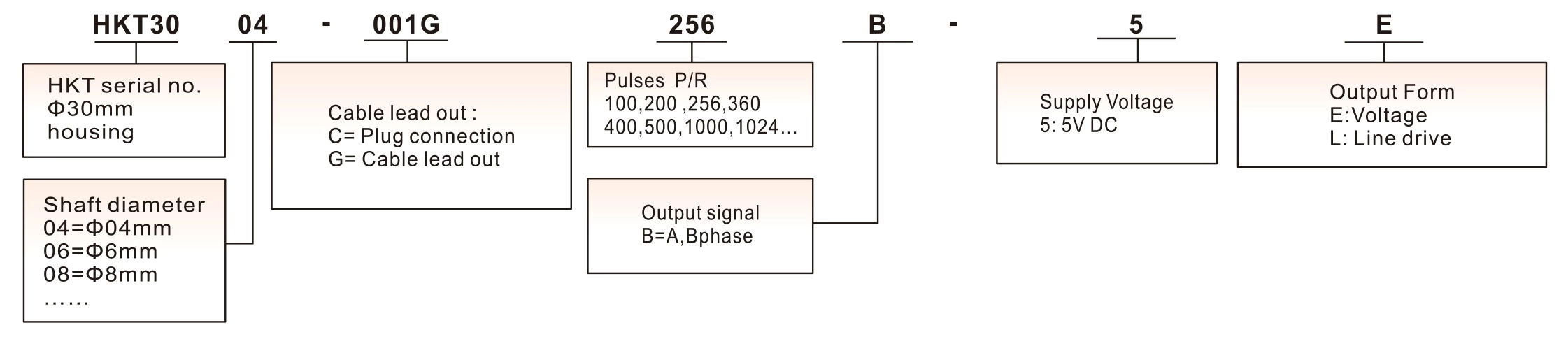

Please contact sales representative to confirm the correctness and availability of the part number
Description:
Industry: servo motor
Product Structure: hollow shaft
Outside diameter (mm): 30
Aperture / Shaft Diameter (mm): 4,5,6,8,10
Resolution (CPR): 100,200,256,360,400,500,1000,1024
Operating voltage: 5V
Output circuit: voltage output, open collector, line drive
◆Feature
Matrix reading, with high impact resistance, strength capability to error correction high reliability, and installation sizes small, wide range of resolution, do not require the signal conditioning. Assembly requirements are less, and has compensation ability of motor shaft radial and axial shifting, widely used in the DC motor, with a multi-aperture for selection.
◆Technical Specifications
| Electrical Specification | ||||
| Output circuit | Line driver output/ Voltage output | |||
| Power Vcc | 5VDC | |||
| Current Consumption | ≤65mA | |||
| High-level output | Min Vcc*85% | |||
| Low-level output | Max 0.3V | |||
| Rise Time Tr | Max 200ns | |||
| Fall Time Tr | Max 50ns | |||
| Max Responding Frequency | 100kHz | |||
| Mechanical Specification | ||||
| Max speed(r/min) | Starting Torque | Max. Shaft Loading | Shocking | Vibration |
| 12000 | <0.05Nm | Radial:25N, Axial:15N | 50G/11ms | 10G 10-2000Hz |
| Rotor Inertia | Working Temperature | Storage Temperature | Protection Grade | Weight |
| 4*10-8Kgm2 | -20~85℃ | -20~85℃ | IP50 | 100g |
◆Connection Table
| Line Driver | 0V | Vcc | A+ | A- | B- | B+ | Z+ | Z- |
| Ribbon Cable | Color | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| TTL | 0V | Z | A | Vcc | B |
| Ribbon Cable | Color | 2 | 3 | 4 | 5 |

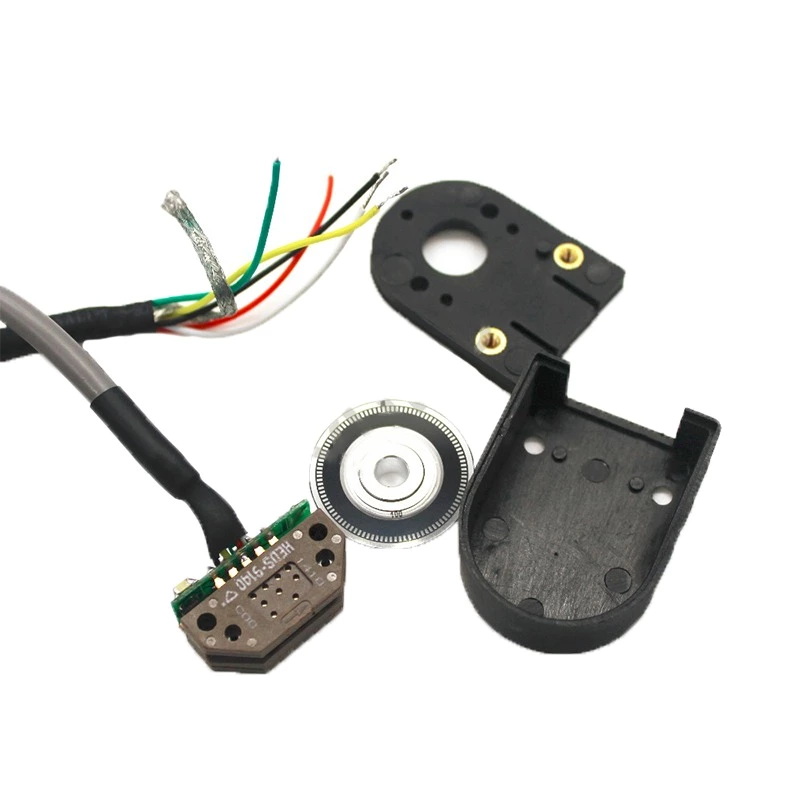

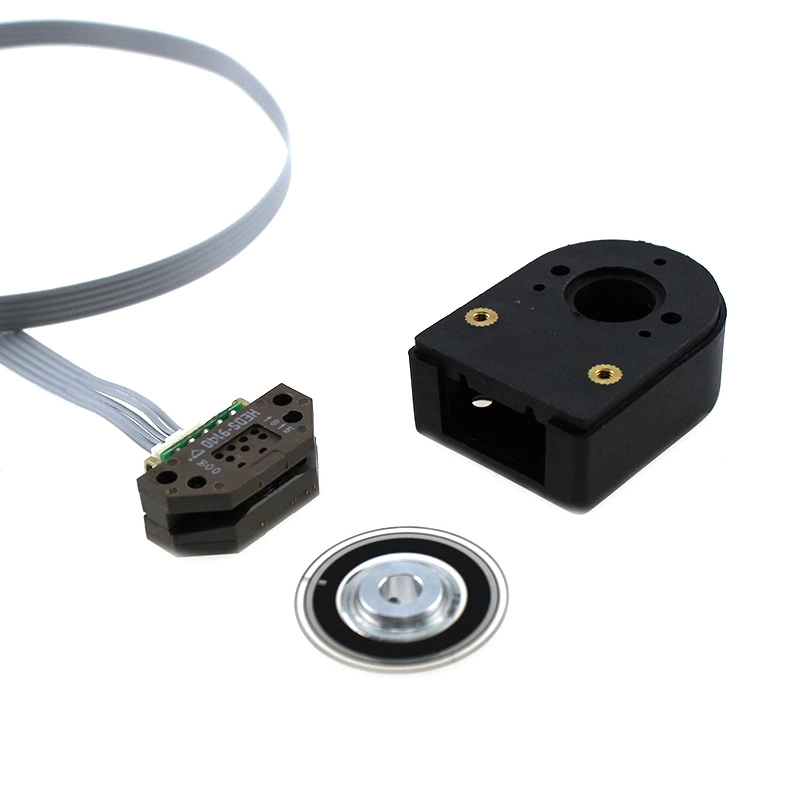

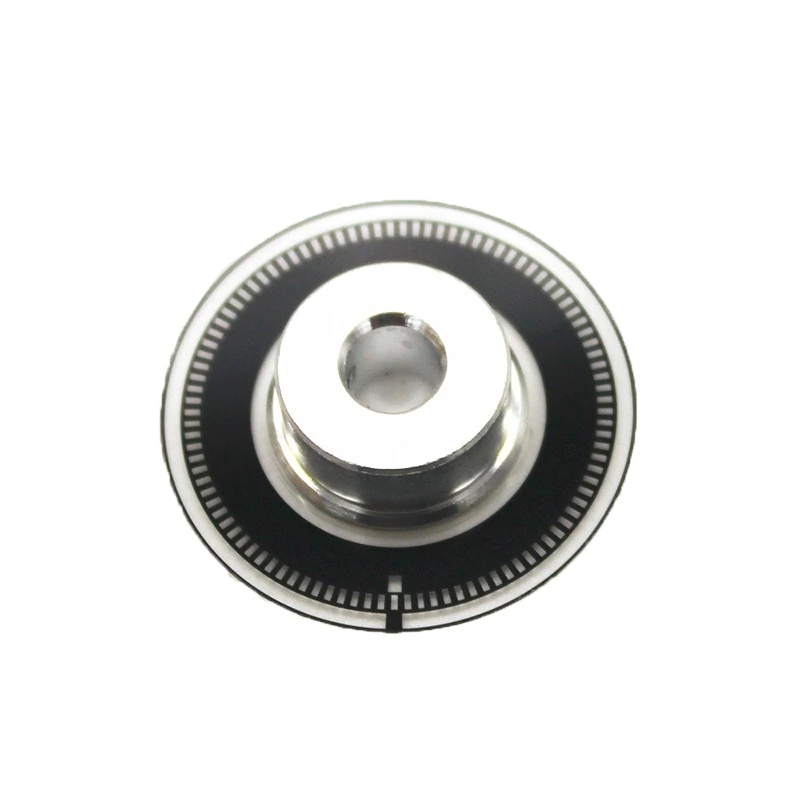

◆Pictures
◆Dimension

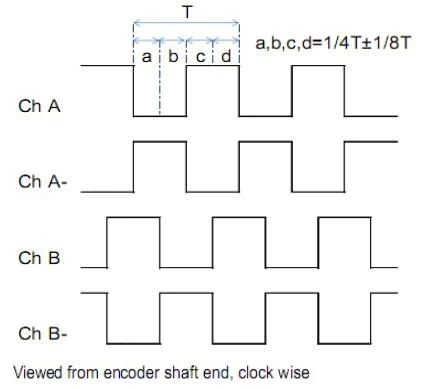

◆Output Waveform
