Overview

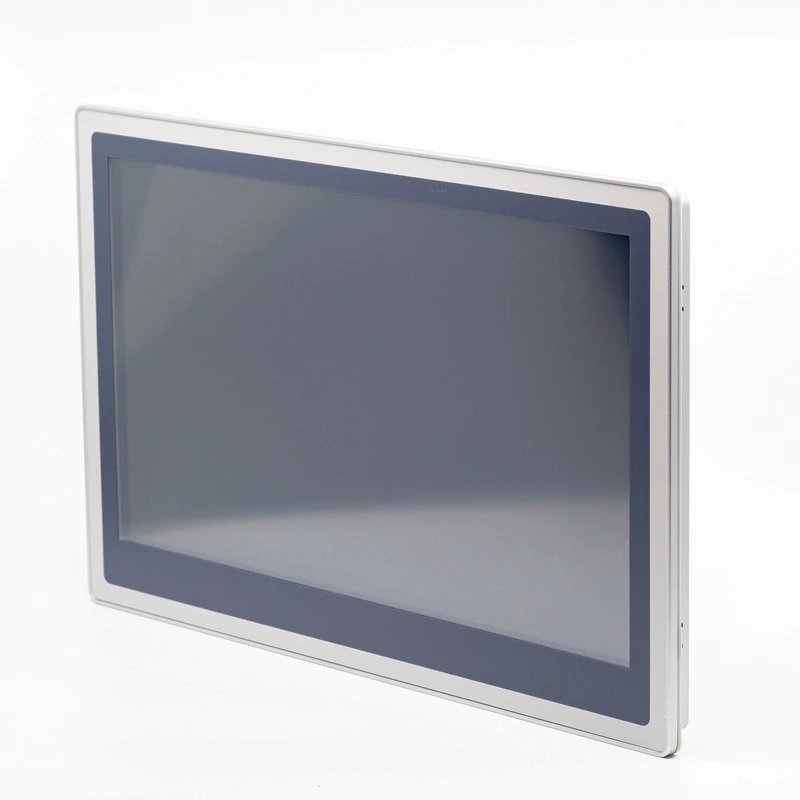

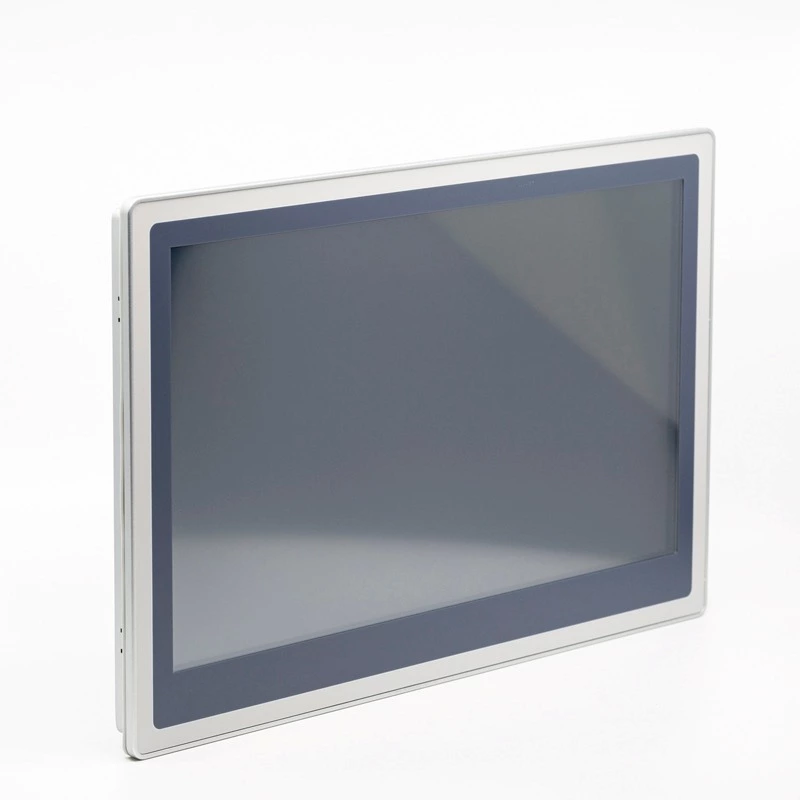

RIEVTECH industrial RTS6000 series HMI, a new generation HMI, with high reliability, low cost, aluminum frame, with 3-proofing treatment for the main board, it is suitable for harsh environment. With fully new moulds, it uses more practical backward withdraw way, with more beautiful outlook and surface, the HMI is with higher resolution and models.
General Specification：
| Hardware Parameters | Touch Screen | 15.6’’16:9 TFT LCD display |
| LCD View Angle（T/B/L/R） | 85'/85'/85'/85' | |
| Resolution | 1920×1080 | |
| Color | 65K | |
| Brightness | 250 cd/m² | |
| Backlight | LED | |
| LCD Life | 50000 hours | |
| Touch Screen | 4-line industrial resistive touch screen | |
| CPU | 1G ARM Cortex-A8 | |
| Memory | 256MB FLASH+512MB DDR3 | |
| RTC | Built in | |
| SD Card | Micro SD (TF) Card | |
| Ethernet | 1-line 10M/100M suitable | |
| USB Ports | 1 USB Slave 2.0 port, 1 USB Host 2.0 port | |
| Program Downloading | USB Slave/U-disc /Ethernet | |

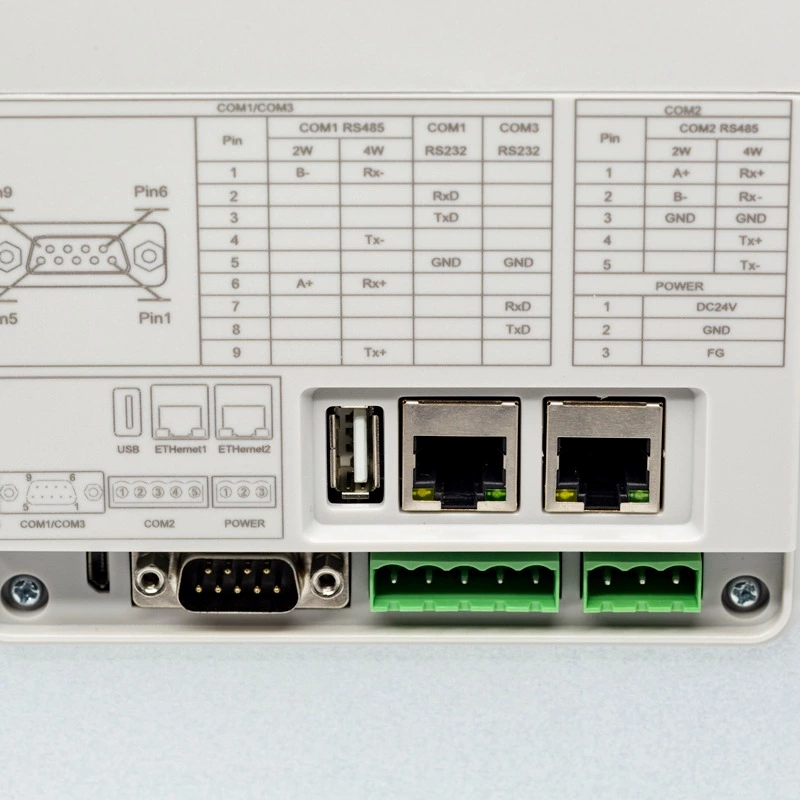

| Serial Communication Ports | COM1/ COM3：RS232/RS485/RS422 COM2：RS485/RS422 | |
| Electric Specifications | Rated Power | < 18W |
| Rated Voltage | DC24V, working range: DC 18V~28V | |
| Power Protection | It uses power isolated module, with lightening &surging protection. | |
| Power Down Allowed | < 5mS | |
| CE & RoHS | Confirms to EN61000-6-2:2005，EN61000-6-4:2007 standard, confirms to RoHS, lightening &surging±1KV,Group Pulse±2KV,Static Contact: 4KV, Air Discharge: 8KV | |
| Environment Specifications | Working Temperature | 0~50℃ |
| Storage Temperature | -20~60℃ | |
| Anti-UV | It prohibits to work under strong UV environment such as direct sunshine. | |
| Environment Humidity | 10~90%RH (Non-condensate) | |
| Anti-vibration | 10~25Hz(X,Y,Z direction 2G/30 minutes) | |
| Cooling | Natural Cooling | |

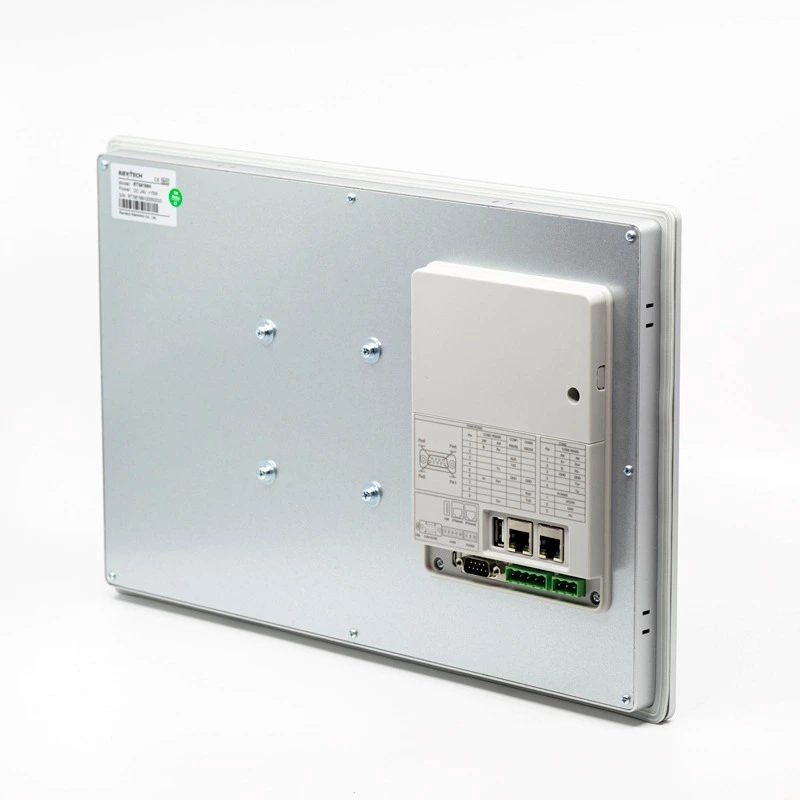

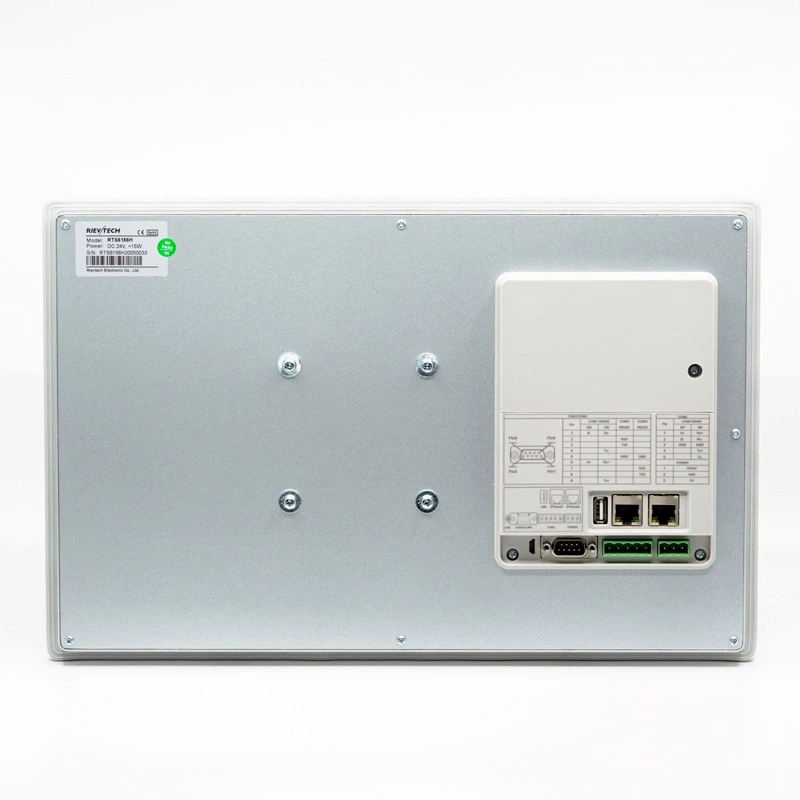

| Mechanic Parameters | Installation Way | Embedded Installation/VESA Installation |
| Protection Degree | The front panel confirms to IP65(with flat cabinet installation) and the back frame confirms to IP20 | |
| Mechanic Structure | Aluminum frame | |
| Hole Dimension | 380mm×245mm | |
| Machine Dimension | 394mm×256mm×36mm, thickness: 22mm without expanding | |
| Weight | About 2250g |
