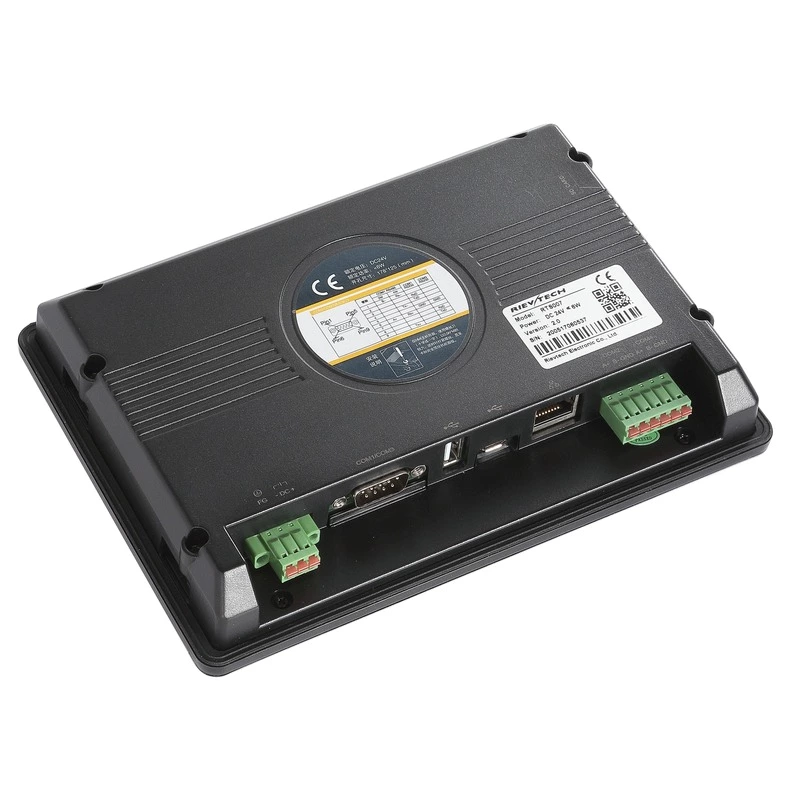

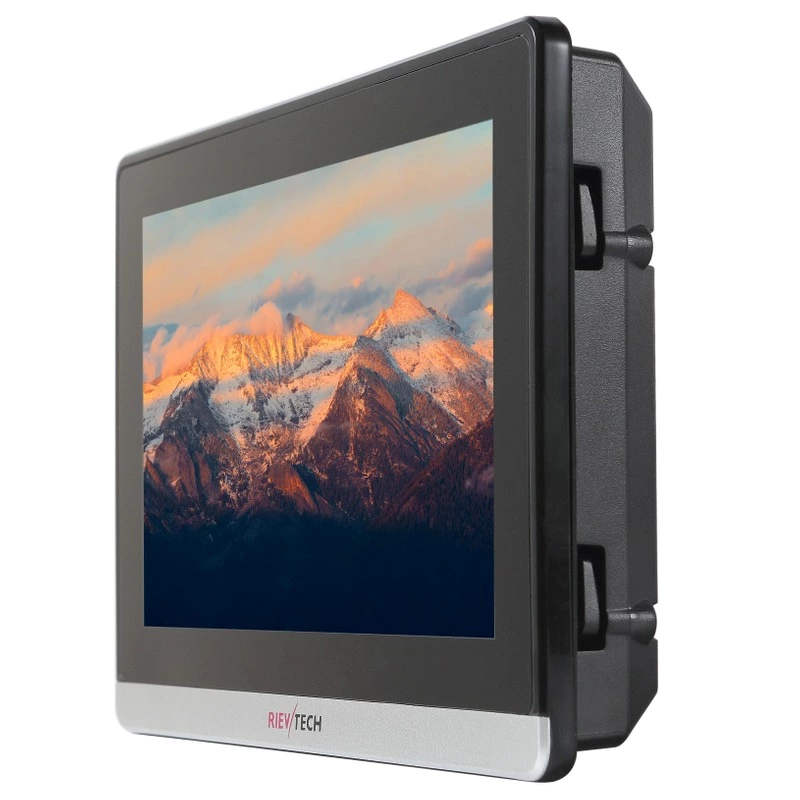

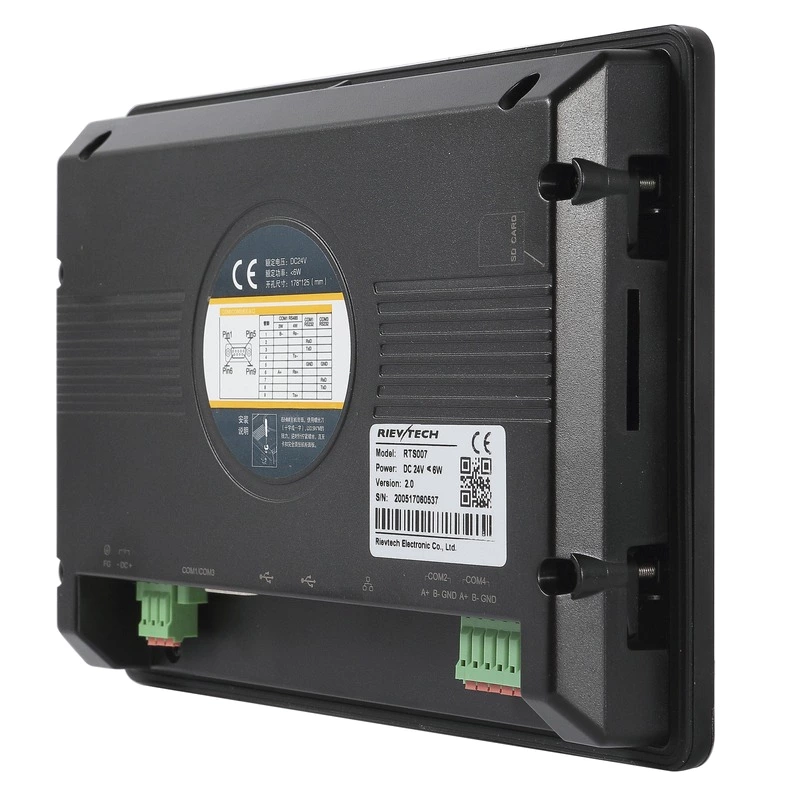

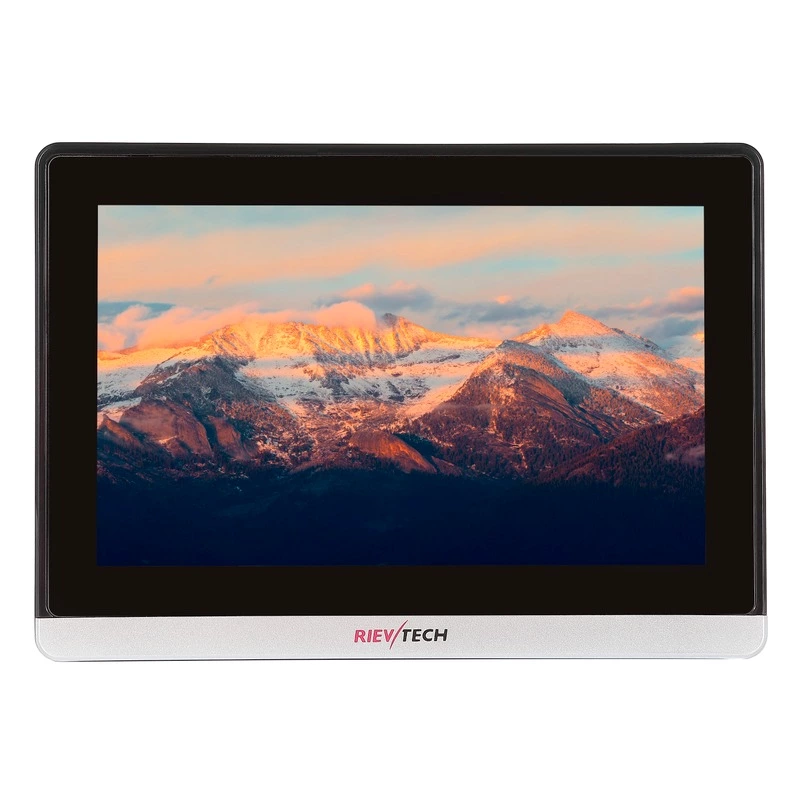

RTS007 7'' Inch Human Machine Interface HMI Touch Screen Panel
- Model:
- RTS007
- Brand:
- RIEVTECH
Highlight:
a. Projected capacitive, multi-touch Glass+Glass touch screen.
b. high brightness, high contrast ratio, full viewing angle.
c. Industrial isolation power supply, spray coating treatment and applicable to various harsh environment.
d. Photoelectricity isolation communication ports.
General Specification：
| Model | RTS007 | |
| Technical parameter | Display | 7” 16:9 TFT LCD |
| Resolution(WxH): | 1024×600 | |
| Colors | 24-bit color | |
| Brightness | 450cd/㎡ | |
| Backlight | LED | |
| Backlight Life | 50000 hours | |
| Touch Panel | Glass+Glass projective multi-touch capacitive HMI | |
| CPU | 600MHz ARM Cortex A8 | |
| Memory | 128M Flash +128M DDR3 | |
| RTC | Built-in | |
| SD Card | Supporting | |
| Ethernet | 10M/100M Ethernet | |
| USB port | USB Device 2.0*1, USB Host 2.0*1 | |
| Download project | U-disk/USB Device/Ethernet | |

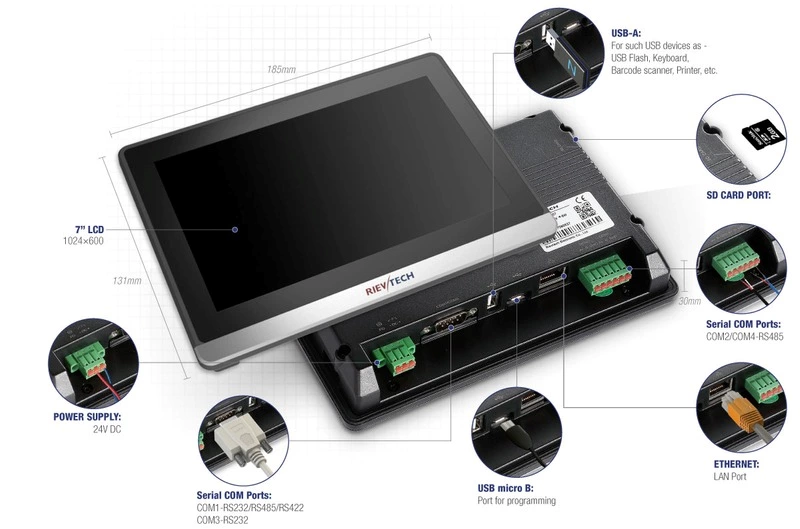

| COM Port | COM1：RS232/RS485/RS422； COM2/COM4：RS485； COM3：RS232 | |
| Specifications | Power Consumption | < 6W |
| Input Power | DC24V, working range DC 9V~28V | |
| Power Protection | Protected from thunder strike and surging | |
| Power down allowed | < 3ms | |
| CE | Complied with EN61000-6-2:2005, EN61000-6-4:2007,CE | |
| RoHS | RoHS, Surge Immunity:±1KV, EFT:±2KV; ESD:4KV, Air:8KV | |
| Environment Specifications | Operating Temperature: | -10~60C |
| Storage Temperature: | -20~70C | |
| Operating Humidity: | 10~90%RH（no condensate） | |
| Vibration Endurance: | 10~25Hz（X、Y、Z direction 2G/30 minutes） | |
| Others： | Degree of Protection: | Front IP65(with NEMA panel),Back IP20 |
| Shell Material: | ABS+PC | |
| Panel Cutout: | 178×125（mm） | |
| Dimension: | 185.1mm×131.1mm×30mm | |
| Weight: | About 750g | |
