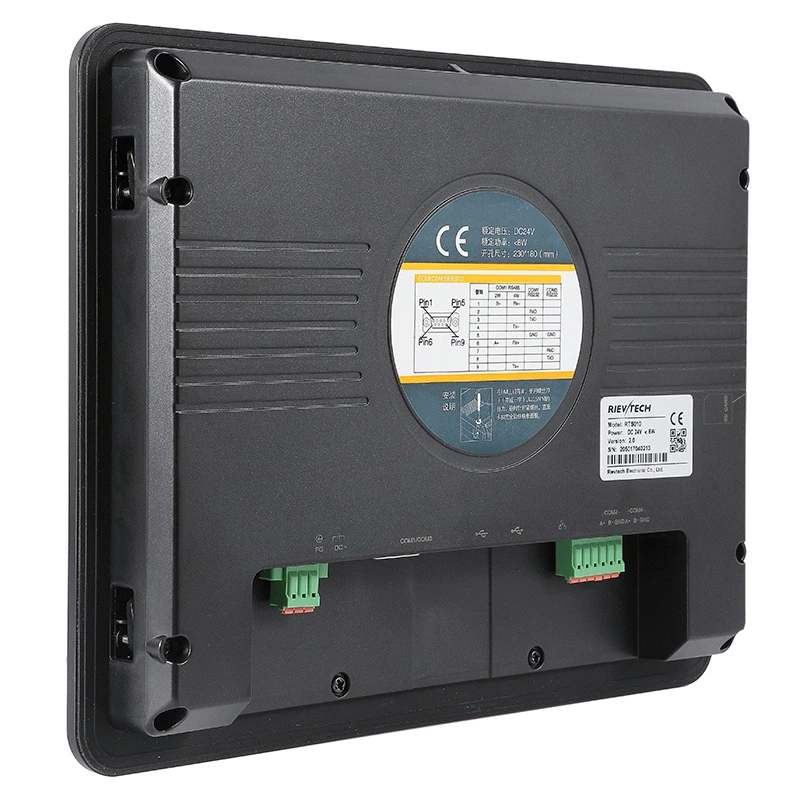

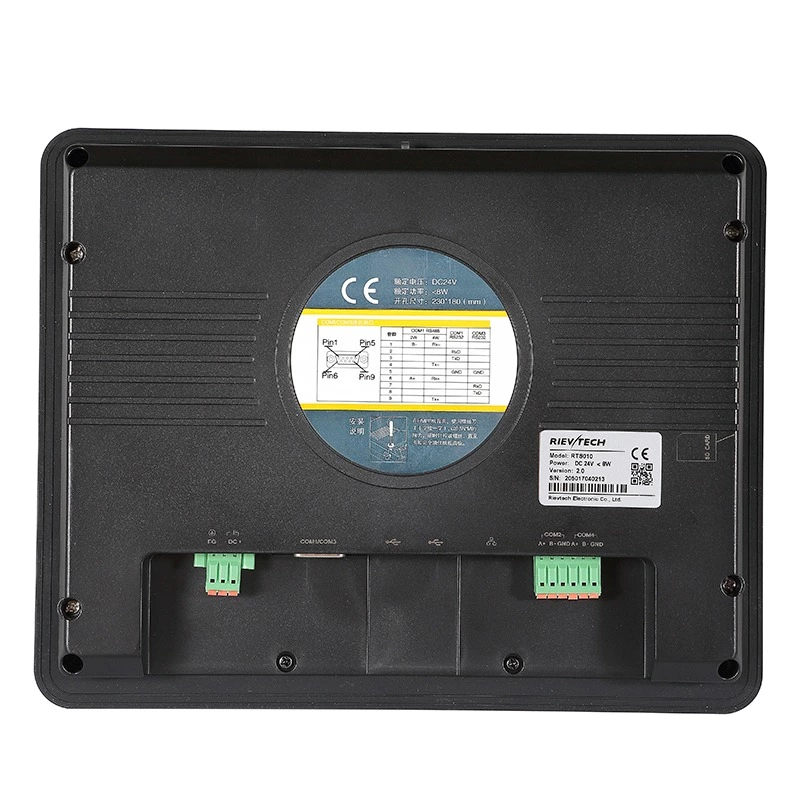

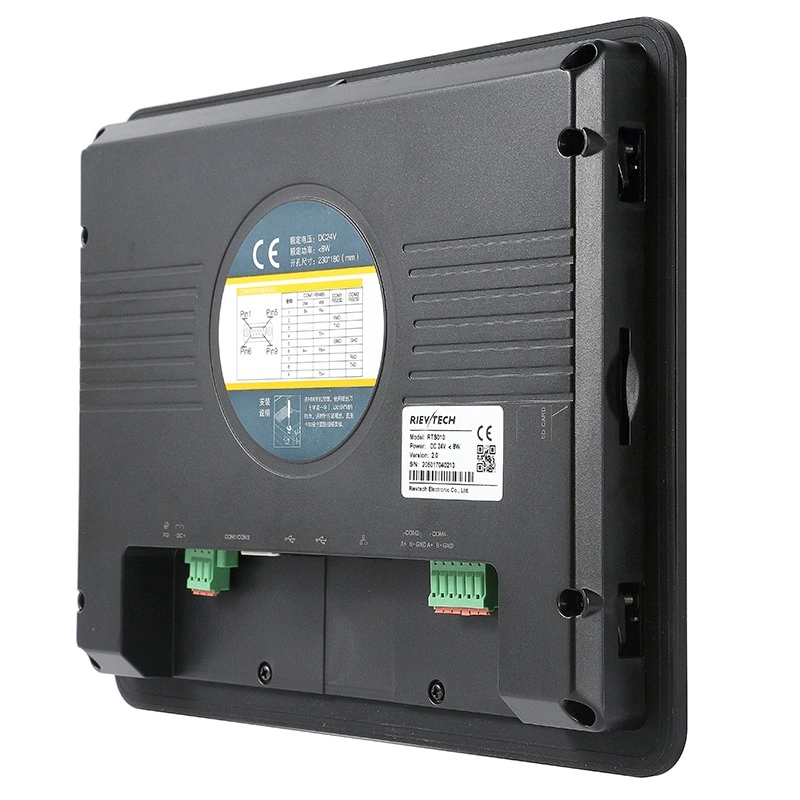

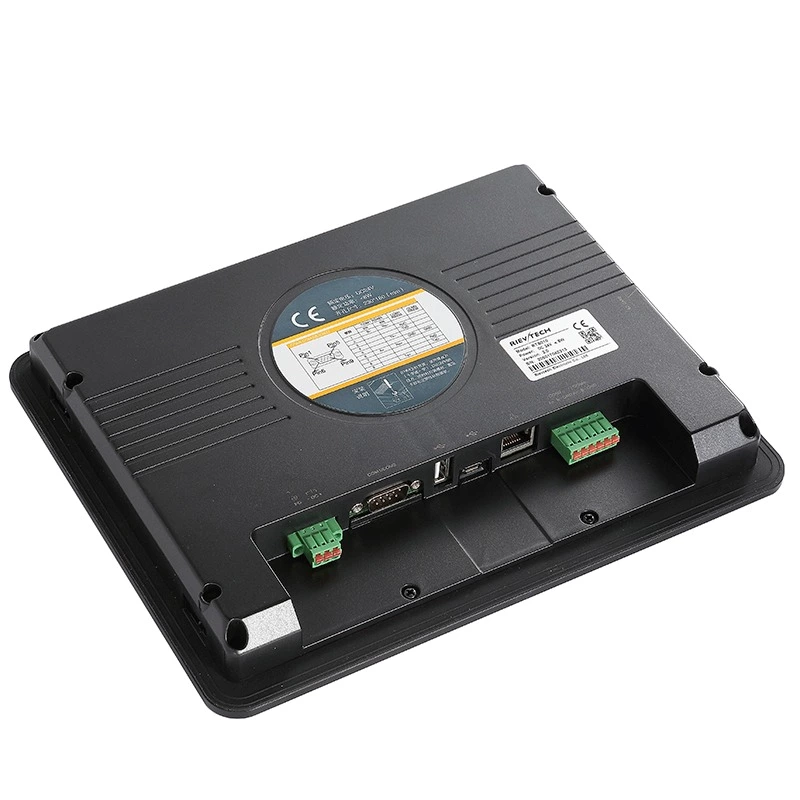

RTS010 Industrial Human Machine Interface HMI Touch Screen Panel
- Model:
- RTS010
- Brand:
- RIEVTECH
Highlight:
Projected capacitive, multi-touch Glass+Glass touch screen.
ABS+PC, plastic enclosure and with only 38mm thickness
Industrial isolation power supply, spray coating treatment and applicable to various harsh environment.
Photoelectricity isolation communication ports.
General Specification：
| Model | RTS010 | |
| Technical parameter | Display | 9.7” 4:3 TFT LCD |
| Resolution(WxH): | 1024×768 | |
| Colors | 24-bit color | |
| Brightness | 350cd/㎡ | |
| Backlight | LED | |
| Backlight Life | 50000 hours | |
| Touch Panel | Glass+Glass projective multi-touch capacitive HMI | |
| CPU | 600MHz ARM Cortex A8 | |
| Memory | 128M Flash +128M DDR3 | |
| RTC | Built-in | |
| SD Card | Supporting | |

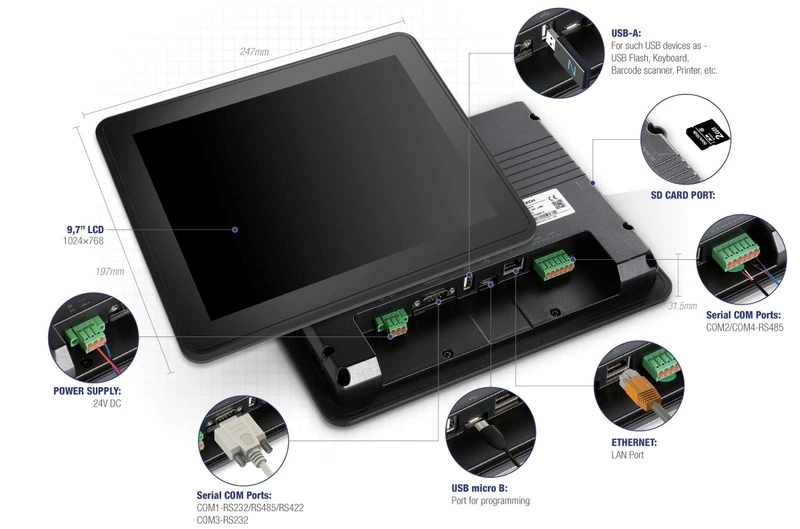

| Ethernet | 10M/100M Ethernet | |
| USB port | USB Device 2.0*1, USB Host 2.0*1 | |
| Download project | U-disk/USB Device/Ethernet | |
| COM Port | COM1：RS232/RS485/RS422； COM2/COM4：RS485； COM3：RS232 | |
| Specifications | Power Consumption | < 6W |
| Input Power | DC24V, working range DC 9V~28V | |
| Power Protection | Protected from thunder strike and surging | |
| Power down allowed | < 3ms | |
| CE | Complied with EN61000-6-2:2005, EN61000-6-4:2007,CE | |
| RoHS | RoHS, Surge Immunity:±1KV, EFT:±2KV; ESD:4KV, Air:8KV | |
| Environment Specifications | Operating Temperature: | -10~60C |
| Storage Temperature: | -20~70C | |
| Operating Humidity: | 10~90%RH（no condensate） | |
| Vibration Endurance: | 10~25Hz（X、Y、Z direction 2G/30 minutes） | |
| Others： | Degree of Protection: | Front IP65(with NEMA panel),Back IP20 |
| Shell Material: | ABS+PC | |
| Panel Cutout: | 230×180（mm） | |
| Dimension: | 247mm×197mm×31.5mm | |
| Weight: | About 1240g | |
