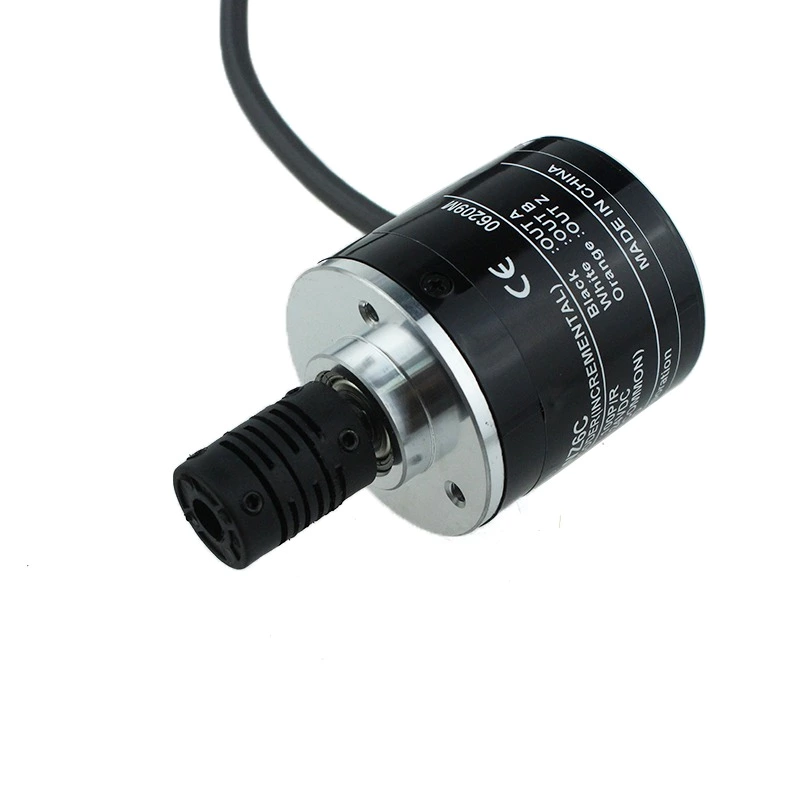

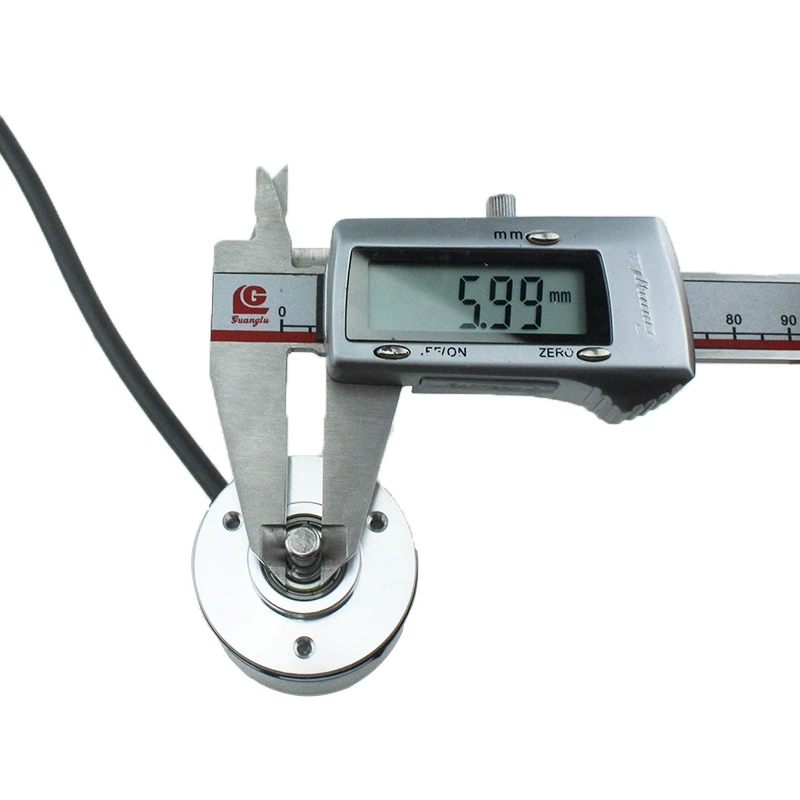

6mm 24VDC shaft incremental encoder E6B2-CWZ6C Rotary Encoder
Features
* Good reliability, long life, anti-jamming performance.
* Stainless steel shaft has a higher stability and protection.
* Metal shell is more solid and anti-impact.
* Bearing load heavy, anti-oil and water.
* Applicability to a wide variety of mechanical and industrial control.
Technical Parameters

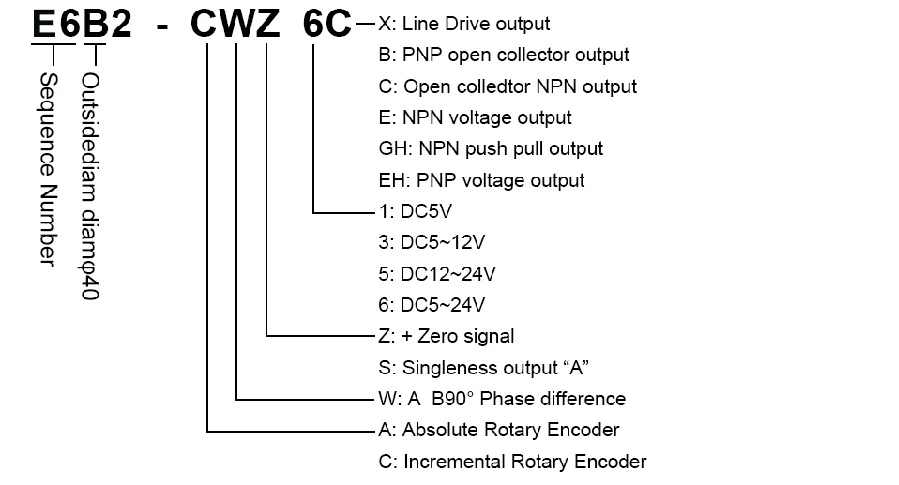

| code | voltage | output circuit | output signals | Number of pulses | |
| E6B2-CWZ6C | DC 5-24V | Open collector NPN output | NPN | A,B,Z, phase | 10,30,40,50,60,100,120,180, 200,256,300,360,400, 500,512,600 |
| E6B2-CWZ5B | DC12-24V | PNP | |||
| E6B2-CWZ3E | DC 5-12V | Voltage output | 720 800 1000 1024 1200 | ||
| E6B2-CWZ1X | DC 5V | Line driver output | 1500 1800 2000 2048 | ||
| 2500 | |||||
| E6B2-CWZ5G | DC 12-24V | Push and pull output | |||
| 3600 4000 |
|||||
