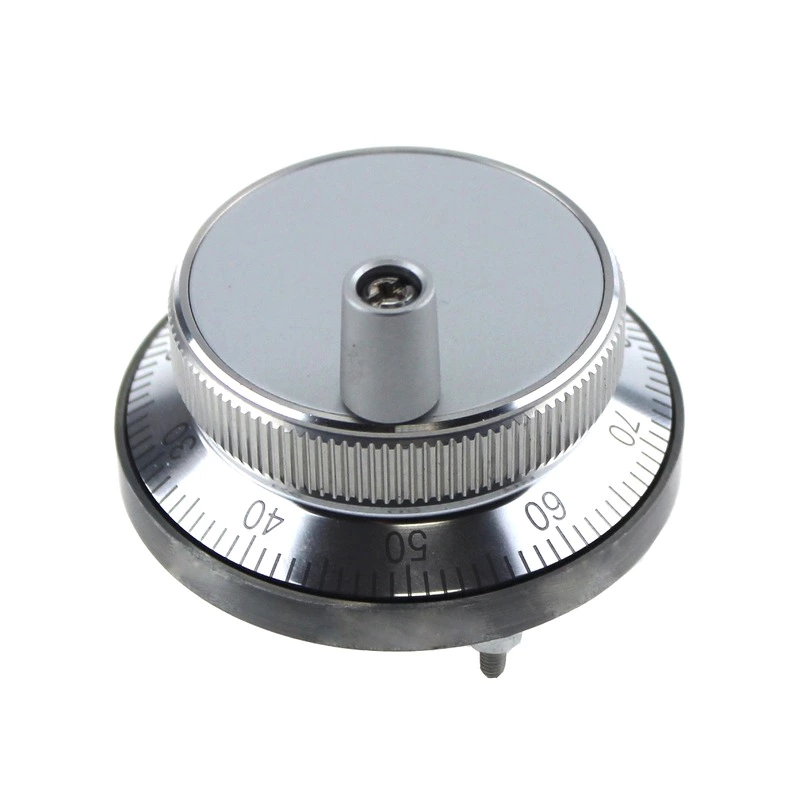

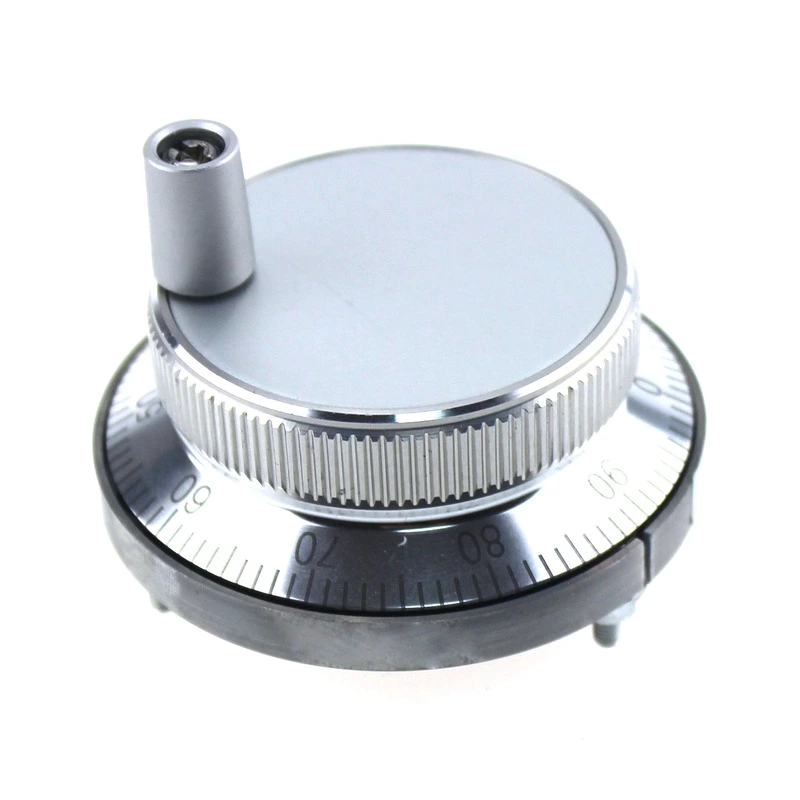

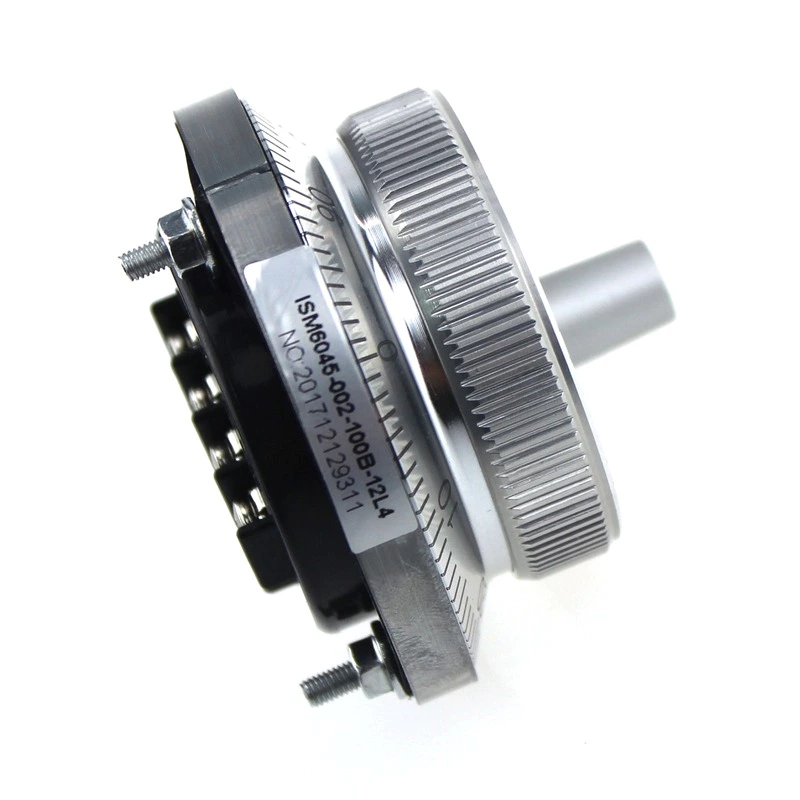

ISM6045-002-100B-12L4 Manual Pulse Generator CNC Hand wheel Manual Encoder 2 channel encoder

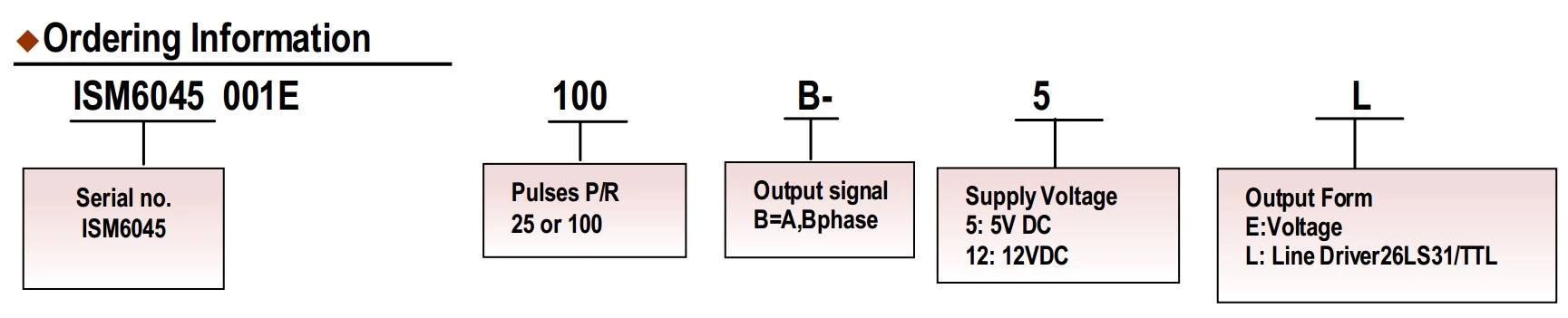

- Model:
- ISM6045-002-100B-12L4
Note:
1, Please contact sales representative to confirm the correctness and availability of the part number
2, Line Driver is only available with 12VDC option
Technical Specifications
| Electrical Specification | ||||
| Output circuit | Open collector | Voltage output | Push pull output | Line driver output |
| Power Vcc | 5~30 | 5~30 | 5±0.25 5~30 | 5±0.2512V |
| Current | ≤80mA | ≤80mA | ≤80mA | ≤150mA |
| Load current | 40mA | 40mA | 40mA | 60mA |
| High-level output | Min Vcc*70% | Min Vcc-2.5V | Min Vcc-1.5V | Min 3.4V |
| Low-level output | Max 0.4V | Max 0.4V | Max 0.8V | Max 0.4V |
| Rise Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
| Fall Time Tr | Max 1us | Max 1us | Max 1us | Max 200ns |
| Max Responding Frequency | 10kHz | 10kHz | 10kHz | 10kHz |
| Mechanical Specification | ||||
| Max speed(r/min) | Working Temperature | Storage Temperature | Protection Grade | Weight |
| 600 | -25~70℃ | -30~85℃ | IP50 | 250g |

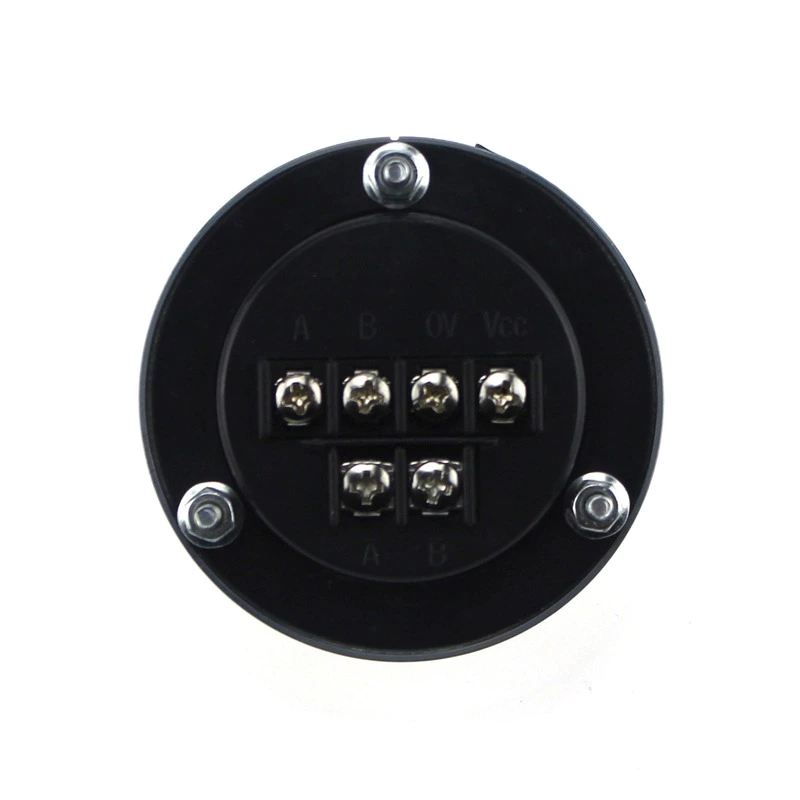

Connection Table
| Code | 1 | 2 | 3 | 4 | 5 | 6 |
| Line drive output | +5V | 0V | Sigal A | SigalA(-) | Signal B | SignalB(-) |
| Other output | +5V | 0V | Sigal A | Signal B | - | - |

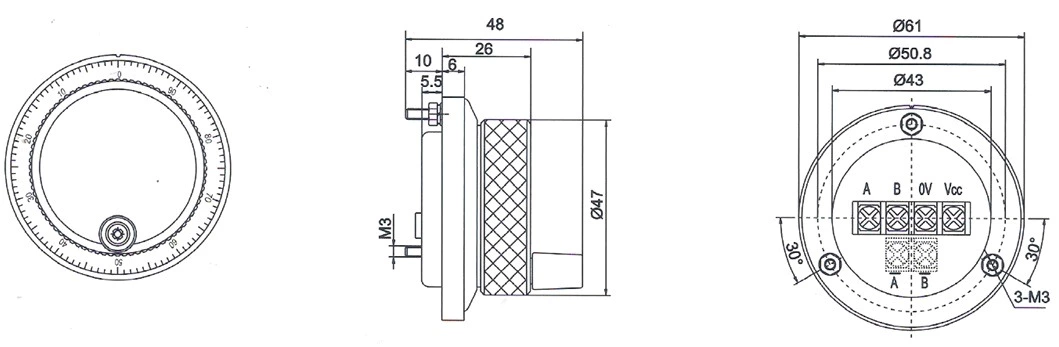

Dimensions(mm)
Output Phase Shift
P pulses Periodic
a,b,c,d=0.25±0.125P
C,P location of sounding point
