Use and characteristics
High torque, high torsional rigidity, high response.
Zero gap.
The presence of bias can also maintain constant velocity motion.

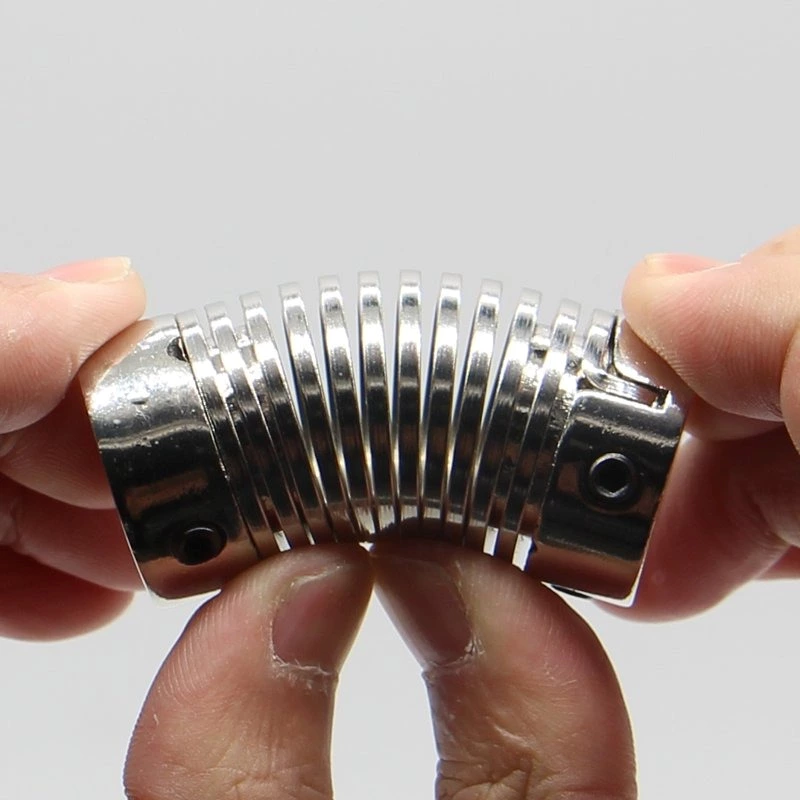

Softness, stainless steel spring can tolerate eccentricity, deflection angle and axis deviation wide error, adjustable.
Standardization of products with different diameters at both ends.
Applications
1. Widely used in various mechanical and hydraulic fields
2. Small dimension, low weight, high transmitted torque
3. Elastomers made of polyurethane with shore hardness between 80-98
4. Compensating the axial relative drift, buffer and vibration reduction
5. Material: cast iron, steel and aluminum alloy

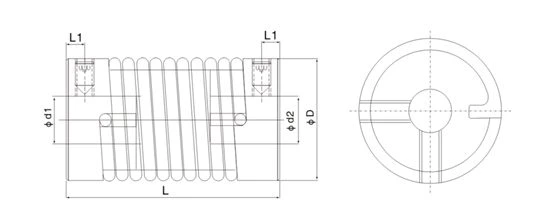

Dimensions
| Model | D | L | d1 d2 Shaft Dia. | M |
| LP-16 24/XX/XX | 16 | 24 | 4-10 | 4-m4*6 |
| LP-16 35/XX/XX | 16 | 35 | 4-10 | 4-m4*6 |
| LP-26 38/XX/XX | 26 | 38 | 6-12 | 4-m5*8 |
| LP-26 55/XX/XX | 26 | 55 | 6-12 | 4-m5*8 |
Product features
| Model | Rated torque(N.m) | Max torque(N.m) | Max Speed(LPm) | Angular deviation(ºC) | Axial deviation(mm) |
| LP-16 24/XX/XX | 0.8 | 1.6 | 10000 | 1.5 | ±1.0 |
| LP-16 35/XX/XX | 0.8 | 1.6 | 10000 | 1.5 | ±1.0 |
| LP-26 38/XX/XX | 2 | 4 | 8000 | 2 | ±1.3 |
| LP-26 55/XX/XX | 2 | 4 | 8000 | 2 | ±1.3 |
