AF-10MR-E2 Programmable Logic Controller plc controller PLC
Introduction:
FAB2 Intelligent Controller Series is a new programmable controller launched by, with the programming by FBD (Function Block Diagram) , which is simpler and easier to learn than the conventional PLC (ladder diagram and instruction). In the design concept of FAB2 series products, traditional separated controller of PLC is combined with the writer on which the program can be written directly by using the function keys on the LCD front panel in order to reduce the cost and bring convenience to users. FAB2 is very compact and light-weighted, especially suitable for internal installation usage.
In addition, FAB2 intelligent controller series can perform the local and remote Internet communication and monitoring. And FAB2 can be used with voice module to perform telephone remote control, voice prompting, auto-dialing and other functions. At present, the FAB2 is widely used in various areas such as industry, agriculture and automatic house control. It can be used almost everywhere.
Features:
1.Password protection
2.Add power indicator
3.Improve analog accuracy
4.Improve RTC accuracy
5.Improve PLC running speed
6.2 channels with 485 interface and 1 channel with the programing interface
7.Support Text Panel (SH300)
8.Support the standard Modbus RTU protocol (only read)
Model NO.: AF-10MR-E2
This model is a DC power supply, rated voltage can be DC12/24V, 6 points DC digital input, 4 points relay output, without LCD.
-
Exquisite and compact design
-
Multi-functional, easy operating, convenient, easy learning
-
AF-LCD can not use in AF-10MR-E2, it instead by AF-HMI.

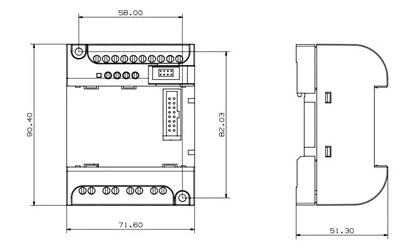

Dimensions: (unit:mm)
Take the 10 points module as an example. The 20 points modules share the same width and height, the only one difference exists in the length.
| Type | Dimensions(mm) |
| 10 points main module | 71.6*90.4*51.3 |
| 20 points main module | 126.4*90.4*51.3 |
Technical parameters:
| Item | AF-10MR-A2 | AF-10MR-D2 | AF-10MR-E2 | AF-10MT-D2 | AF-10MT-GD2 | AF-10MT-E2 |
| AF-20MR-A2 | AF-20MR-D2 | AF-20MR-E2 | AF-20MT-D2 | AF-20MT-GD2 | AF-20MT-E2 | |
| Surge Immunity | 2kv(common mode), 1kv(differential mode), Level 3 (IEC61000-4-5) | |||||
| Electrostatic Discharge (outer casing) | ±8kv(air discharge)/±6kv(contact discharge), Level 3 (IEC61000-4-5) | |||||
| Ambient Temperature | -10℃~+55℃ | |||||
| Storage Temperature | -40℃~+70℃ | |||||
| Ambient Humidity | 5%~95%RH | |||||
| Degree of Protection | IP20(Non-waterproof) | |||||
| Installation | Fixing with M3 screws or Standard DIN rail mounting | |||||
| Dimensions (mm) | 71.6*90.4*51.3(10 points);126.4*90.4*51.3(20 points) | |||||
| Programming Language | FBD | |||||
| Points | 10 points/20 points | |||||
| Memory Capacity | 127 FBDs | |||||
| Real-time Clock | 160h | |||||
| Password Protection | yes | |||||
| Analog Operation | At most 12 channels with DC 0-10V voltage | |||||
| Simulate Monitoring | Yes | |||||
| Communication Interface | support 2 channel with RS485 and 1 channel with program interfaces | |||||
| Baud Rate | 9600bps/19200bps | |||||
| Communication Protocol | Self-defined protocol/MODBUS RTU protocol | |||||
| Power Supply | ||||||
| Rated Voltage | AC100-240V | DC12-24V | AC/DC12-24V | DC12-24V | DC12-24V | DC12-24V |
| Permissible Range | DC85-260V | DC10-28V | AC/DC10-28V | DC10-28V | DC10-28V | DC10-28V |
| Power Consumption | <10w | <7w | <7w | <2w | <2w | <2w |
| Digital Input | ||||||
| Input Type | NPN/PNP | NPN/PNP | NPN/PNP | NPN/PNP | NPN/PNP | NPN/PNP |
| Input Signal 0 | AC0-40V | DC0-5V | AC/DC0-5V | DC0-5V | DC0-5V | DC0-5V |
| Input Signal 1 | AC80-240V | DC10-24V | AC/DC10-24V | DC10-24V | DC10-24V | DC10-24V |
| Isolation | Photoelectric isolation | / | / | / | / | / |
| Isolated Group | 6/12 groups | |||||
| Isolated Voltage | 2500/5000Vr.m.s | |||||
| Digital Output | ||||||
| Output Type | Relay | Relay | Relay | Transistor(NPN) | Transistor(PNP) | Transistor(NPN) |
| Isolation Method | Relay isolation | Relay isolation | Relay isolation | - | - | - |
| Analog Input | ||||||
| Input Type | -- | (DC0-10V)/6 inputs | -- | (DC0-10V)/6 inputs | (4-20mA)/2 inputs | -- |
| (DC0-10V)/12 inputs | (DC0-10V)/12 inputs | (DC0-10V)/12 inputs | ||||
FAB2 series programmable logic controller
| Type | Power | Input | Output |
| AF-10MR-A2 | AC85V-240V | 6 points AC digital input | 4 points relay output |
| AF-10MR-D2 | DC12V/24V | 6 points DC digital input (can be used as analog input) | 4 points relay output |
| AF-10MR-E2 | DC12V/24V | 6 points DC digital input | 4 points relay output |
| AF-10MT-D2 | DC12V/24V | 6 points DC digital input(can be used as analog input) | 4 points NPN transistor output |
| AF-10MT-GD2 | DC12V/24V | 6 points DC digital input(can be used as analog input) | 4 points PNP transistor output |
| AF-10MT-E2 | DC12V/24V | 6 points DC digital input | 4 points transistor (NPN)output |
| AF-20MR-A2 | AC85V-240V | 12 points AC digital input | 8 points relay output |
| AF-20MR-D2 | DC12V/24V | 12 points DC digital input (can be used as analog input) | 8 points relay output |
| AF-20MR-E2 | DC12V/24V | 12 points DC digital input (without analog input) | 8 points relay output |
| AF-20MT-D2 | DC12V/24V | 12 points DC digital input(can be used as analog input) | 8 points NPN transistor output |
| AF-20MT-GD2 | DC12V/24V | 12 points DC digital input(can be used as analog input) | 8 points PNP transistor output |
| AF-20MT-E2 | DC12V/24V | 12 points DC digital input | 8 points NPN transistor output |

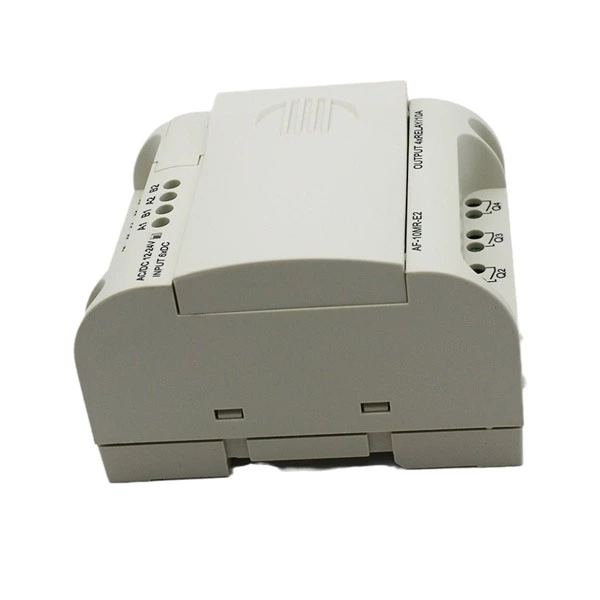

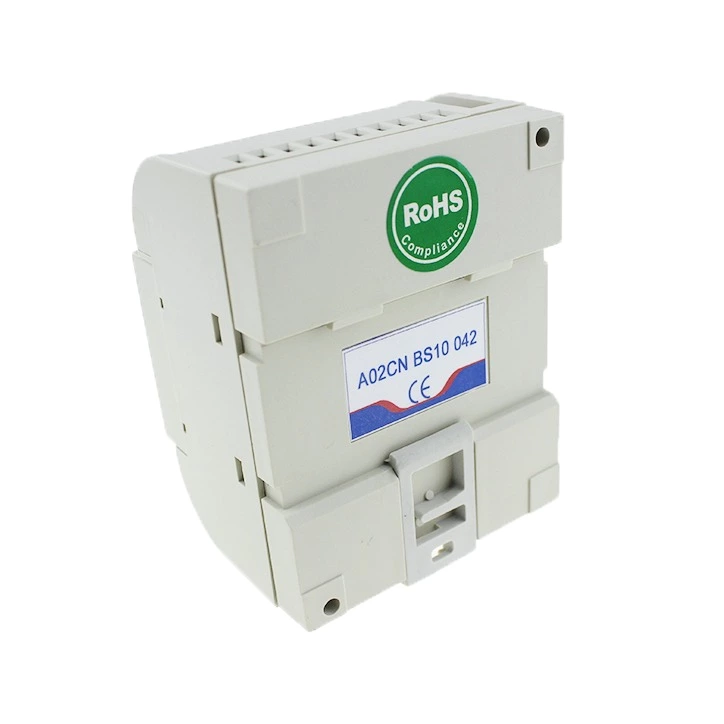

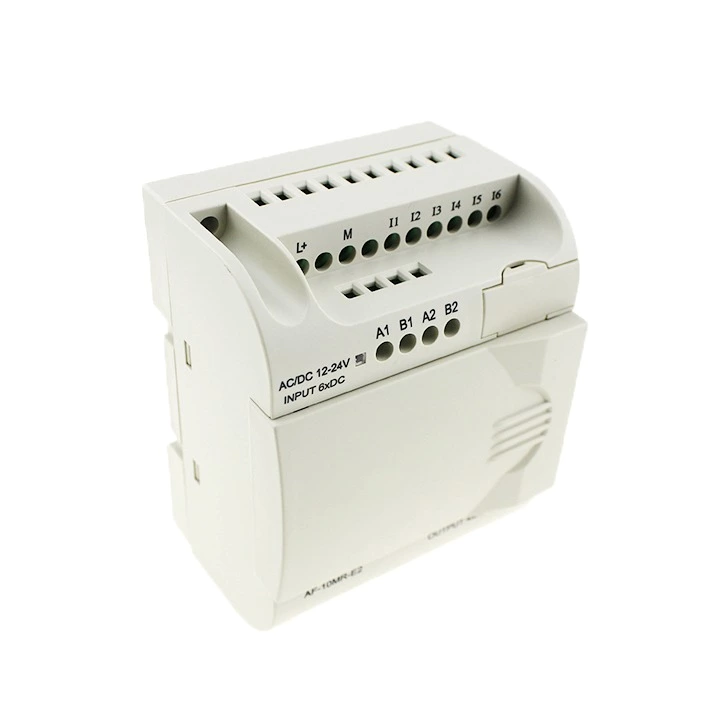

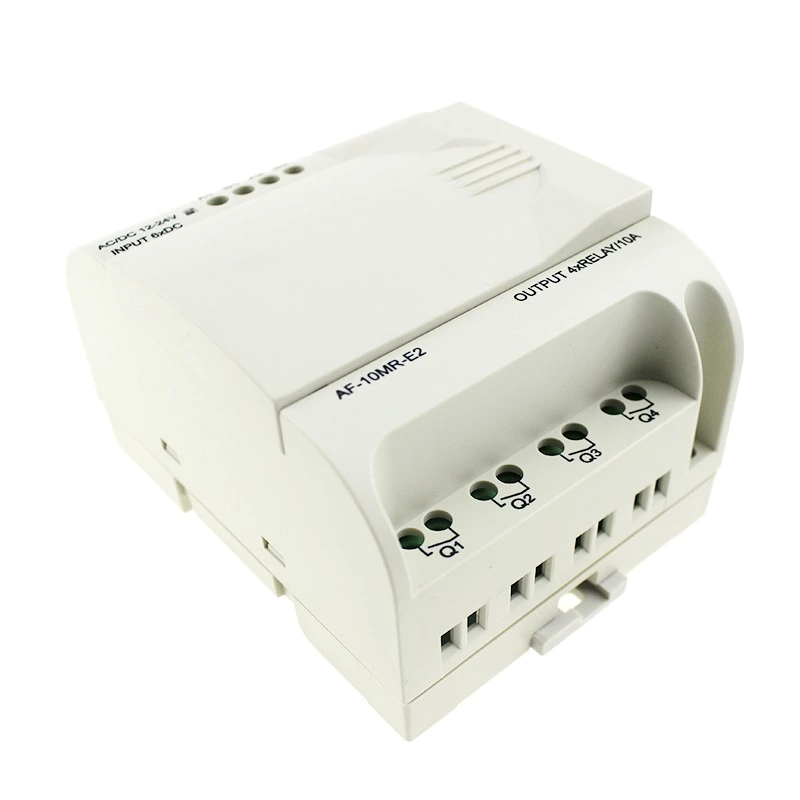

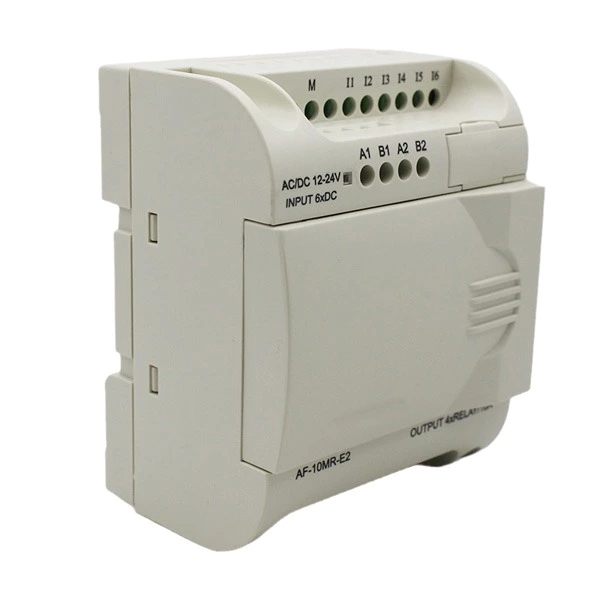

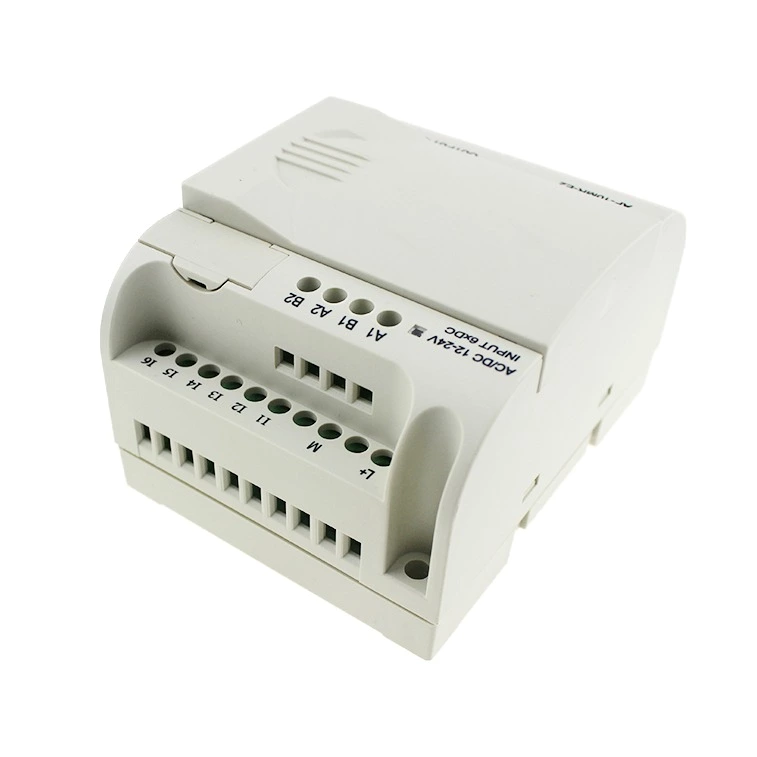

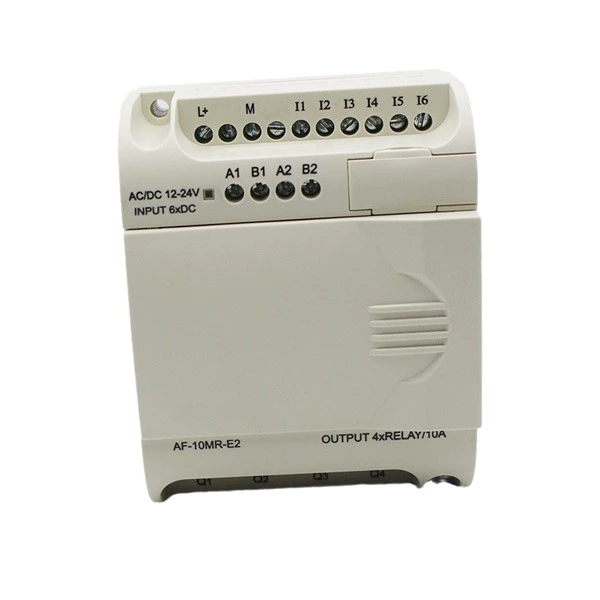

Product Pictures
