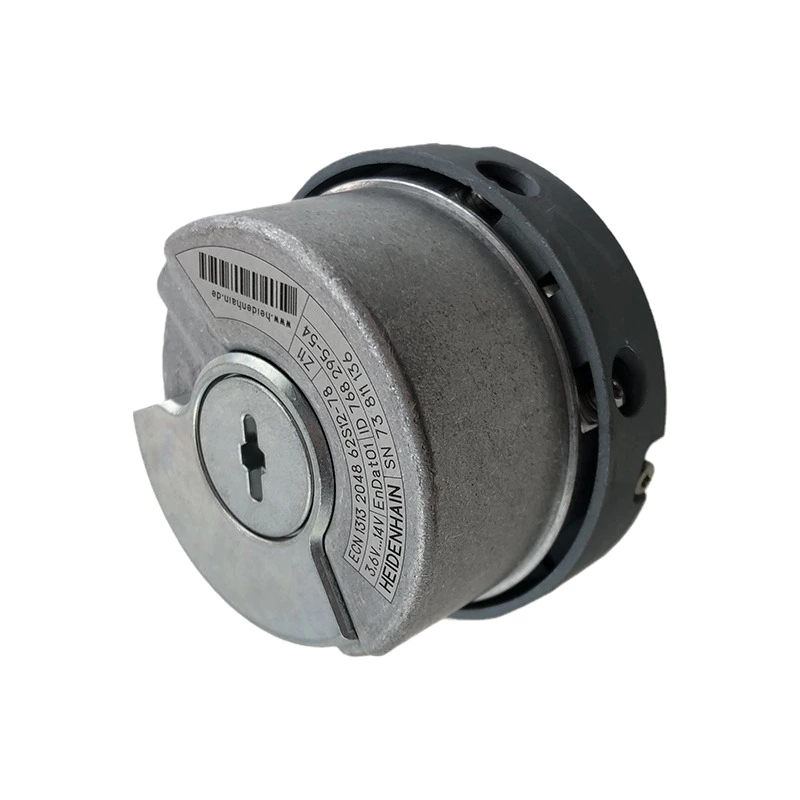

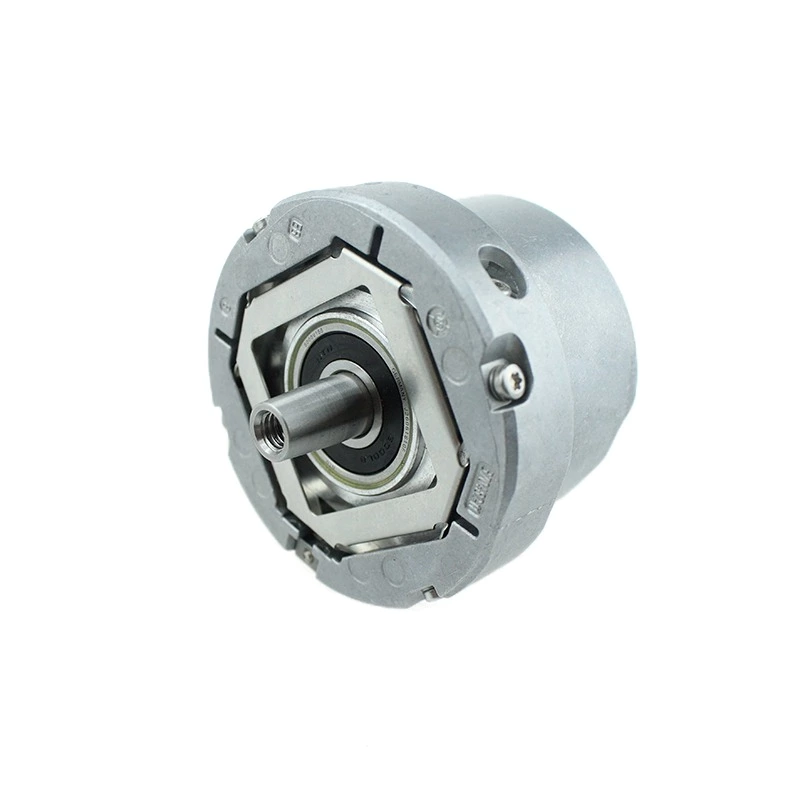

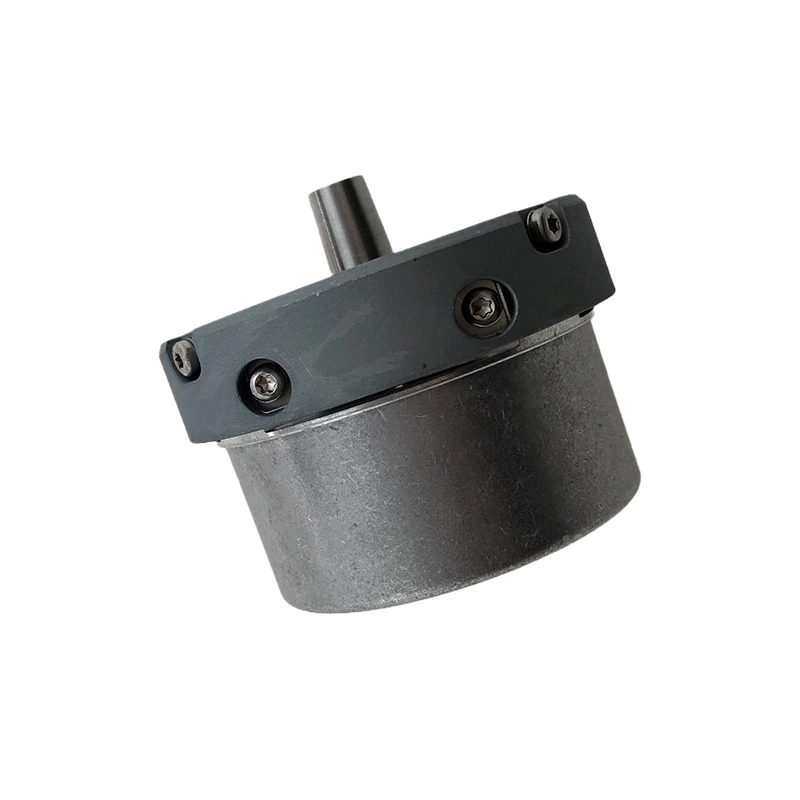

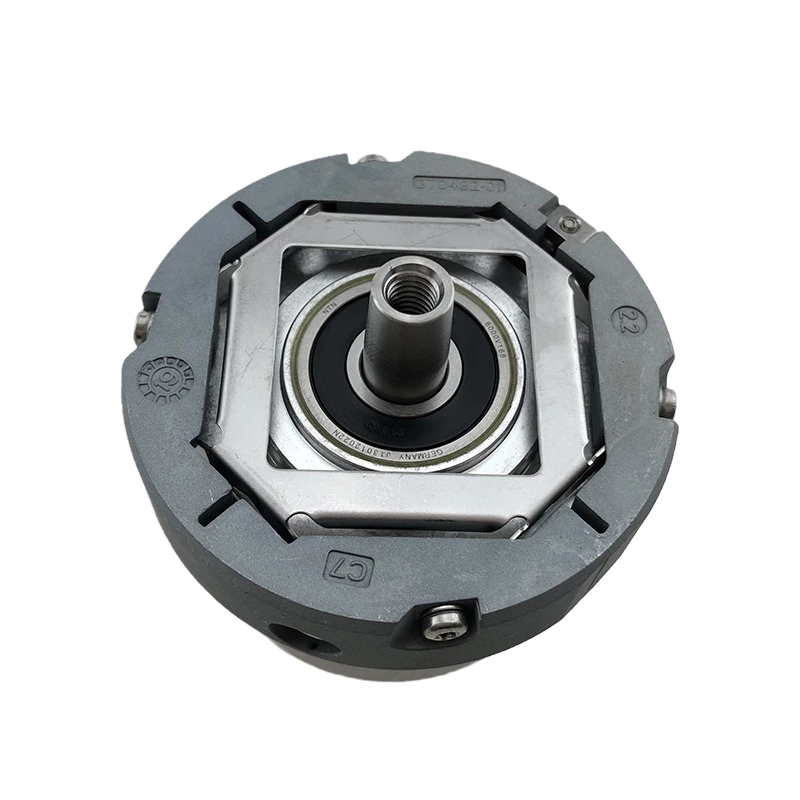

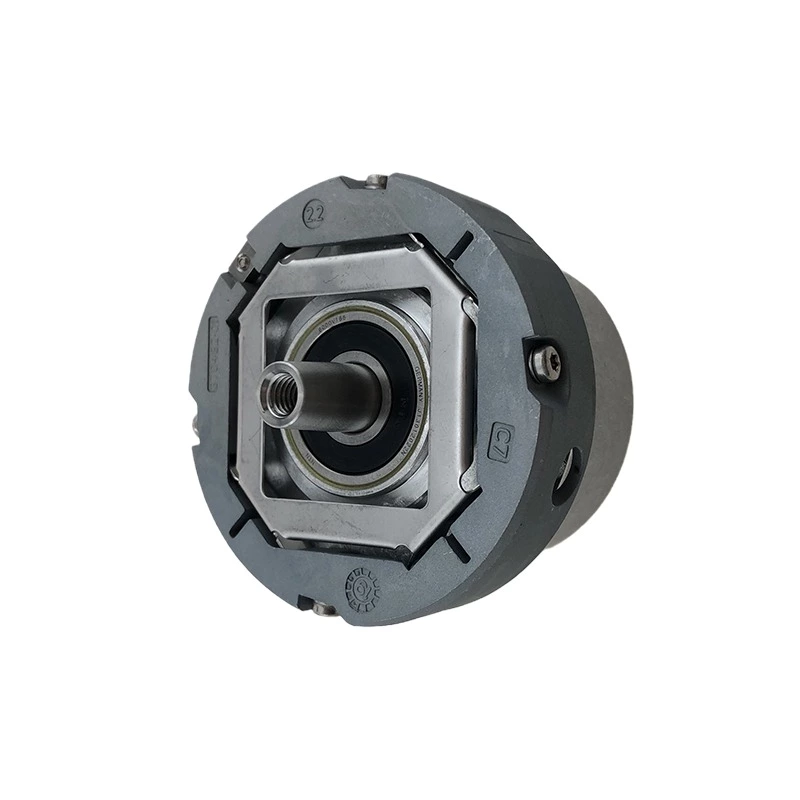

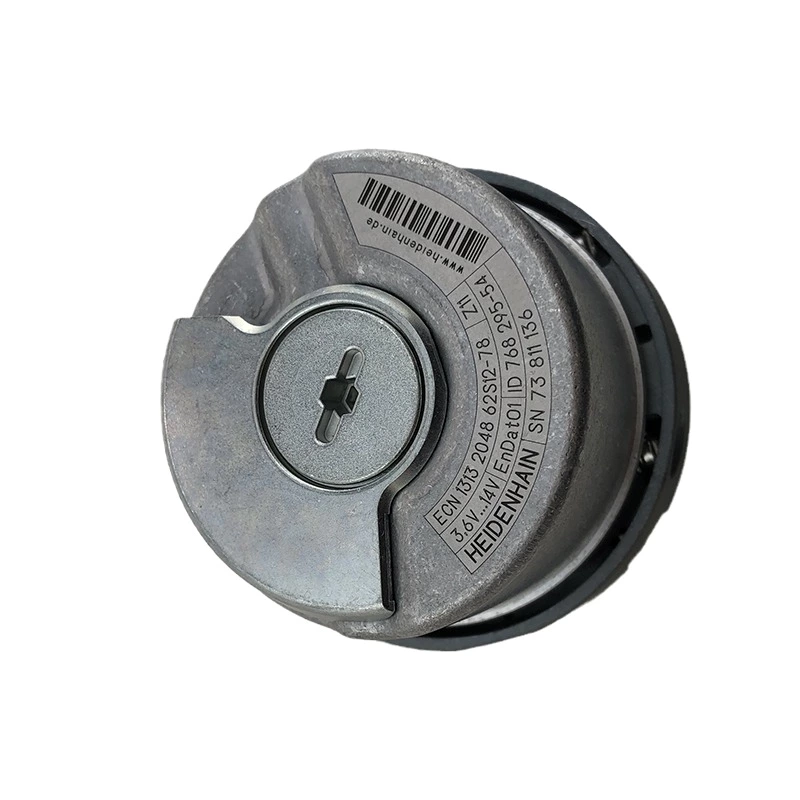

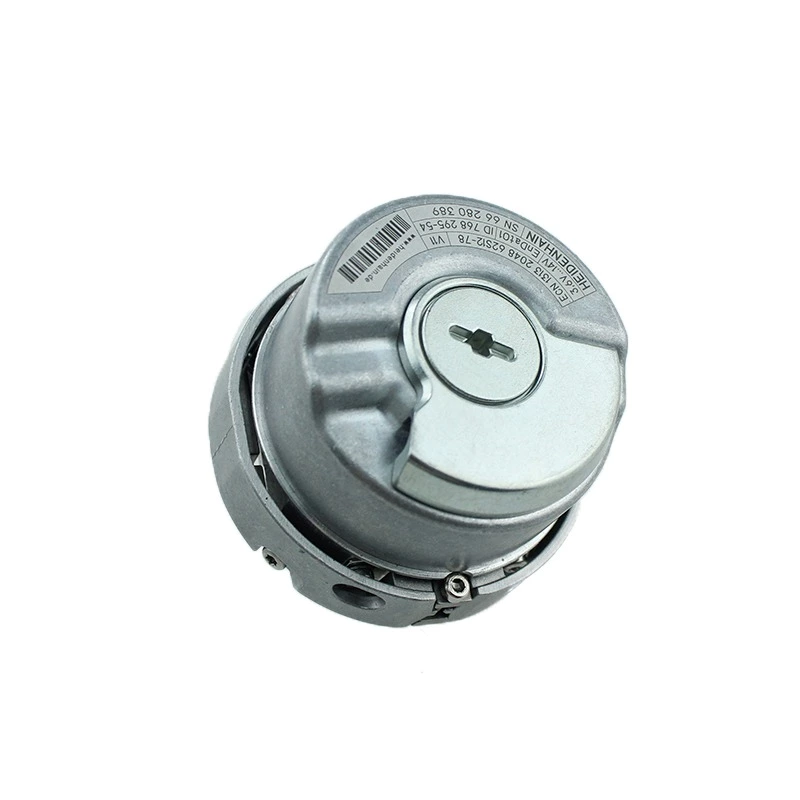

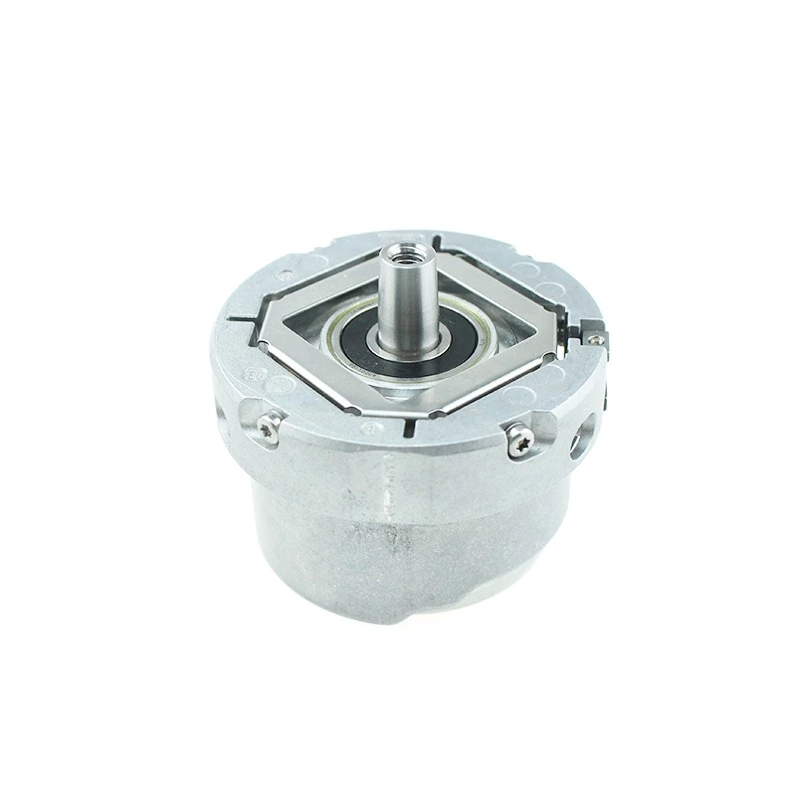

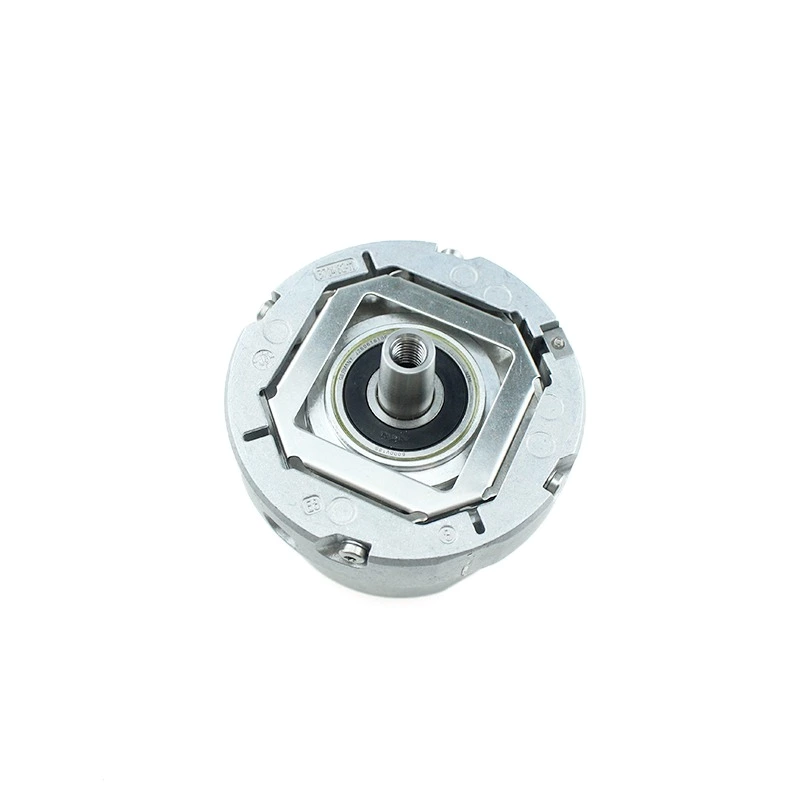

Encoder Heidenhain ECN 1313 2048 Escalator Elevator Traction Machine Encoders ECN 1313 2048 62S12-78 Hollow Shaft Encoder
- Model:
- ECN 1313 2048 62S12-78
Encoder Heidenhain ECN 1313 2048 Escalator Elevator Traction Machine Encoders ECN 1313 2048 62S12-78 Hollow Shaft Encoder
| Code | ECN1313 |
| Position values/revolution | 8192 (13 bits) |
| Electtically permissible speed/error |
1500 rpm/±1 LSB 12 000 rpm/±50 LSB |
|
Calculation time Clock frequency |
≤9 µs ≤2MHz MHz |
| Incremental signals | 1Vpp |
| Line count/system accuracy | 2048/±20“ |
| Reference mark | – |
| Cutoff frequencu -3dB | ≥400 kHz |
|
Electrical connection Via PCB connector |
12-pin |
| Voltage supply | DC 3.6V to 14V |
| Power consumption (maximum) |
3.6 V:≤600 mW 14 V:≤700 mW |

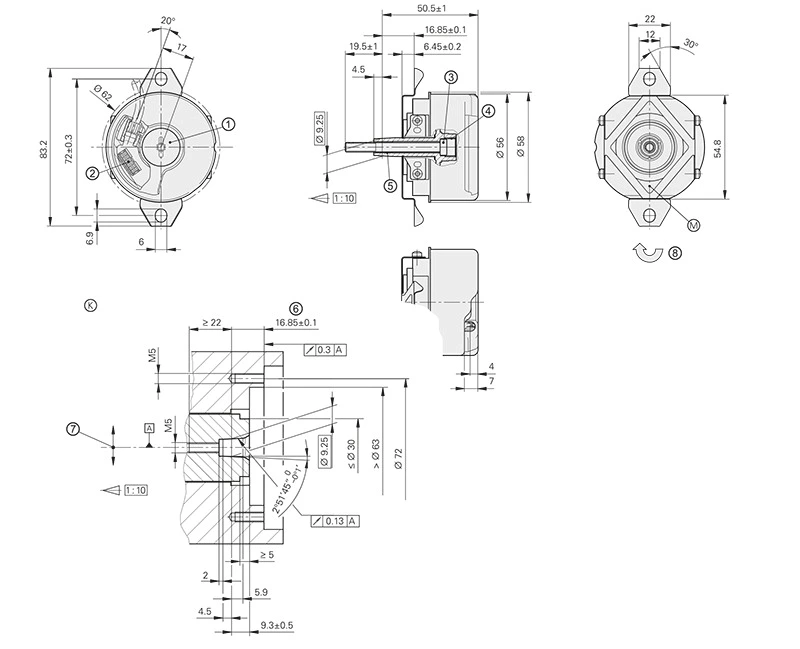

| Current consumption | 5 V: 85 mA (typical, without load) |
| Stator coupling | Plane-surface coupling |
| Shaft | Taper shaft φ9.25mm;taper 1:10 |
| Mech. permiss. speed n | ≤2000 rpm |
| Starting torque | ≤0.01 Nm(at 20℃) |
| Moment of inertia of rotor | 2.6·10–6 kgm^2 |
| Permissible axial motion of measured shaft | ±1.5 mm |
| Radial runout of the measured shaft | 0.13 mm |
|
Vibration 55 Hz to 2000 Hz Shock 6 ms |
≤300 m/s^2 ≤2000 m/s^2 |
| Operating temperature | –40℃ to +115℃ |
| Protection EN 60 529 | IP40 when mounted |
