◆Specifications
1.Industry plastics is more flexible and bearing
2.Little torque coupling with high dependability

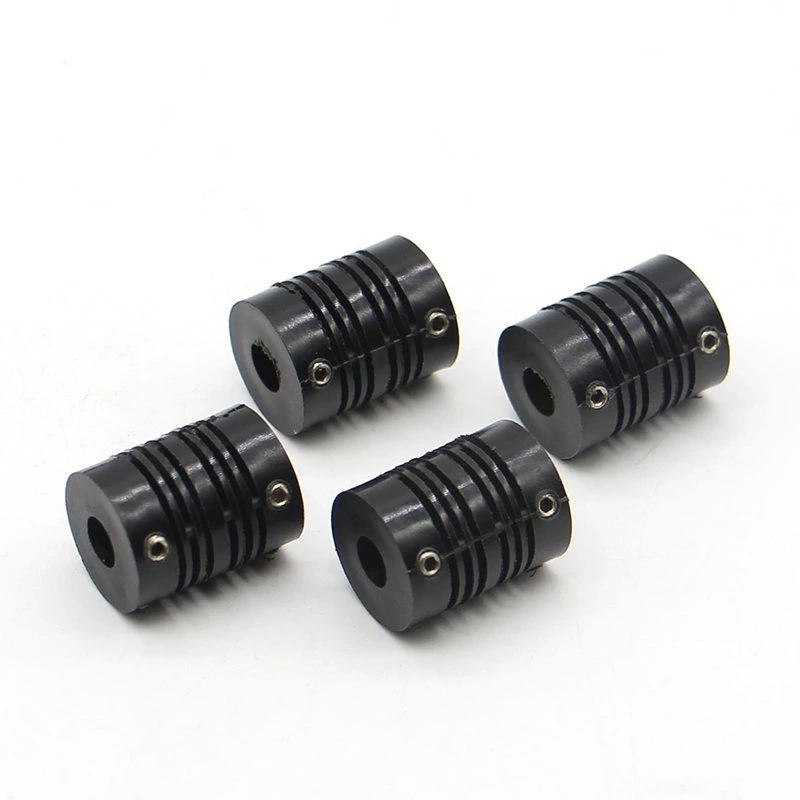

The stepped radial slot design of the coupling provides a product that combines the high torsional stiffness of a straight beam coupling with the lateral flexibility of its helical counterpart.
Coupling is moulded from a plastic capable of withstanding temperatures up to 150°C. This provides economic advantage to the customer and gives the coupling a low inertia which, combined with its other performance characteristics, makes it ideal for driving encoders and for applications that require electrical isolation and corrosion resistance
◆Features
* Single or double plate springs, optional to customer.
* Zero backlash.
* Excellent response and high torque capacity.
* Identical clockwise and anti-clockwise rotational characteristics.
* One-piece metallic spring coupling, 2 screws for clamping.
* For servomotor, step motor connection.
* Material: Engineering plastics
* M: The hole dia. Of the encoder end. N: The hole dia. Of the user end.
* D and L can be defined by user; Standard: Outside D=40mm, length=50mm.
* Diameter of hollow shaft can be defined by user; Standard hole 6mm, 8mm.
* Torque<25.0Nm, the axial degree <0.5mm, the corner setover<1 degree.
* Extensive application.

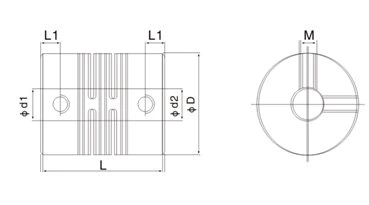

Dimensions
| Model | D | L | d1 d2 Shaft Dia. | L3 | M | Tighten torque(N.m) |
| LR2-S-14 22/XX/XX | 14 | 22 | 4 | 3.2 | 3 | 0.7 |
| LR2-S-16 22/XX/XX | 16 | 22 | 6 | 3.2 | 3 | 0.7 |
| Model | Rated torque(N.m) | Max torque(N.m) | Max speed(rpm) | Angular deviation(ºC) | Weight(g) |
| LR2-S-14 22/XX/XX | 0.6 | 1.2 | 6000 | 3 | 3 |
| LR2-S-16 22/XX/XX | 0.8 | 1.6 | 6000 | 3 | 4 |
