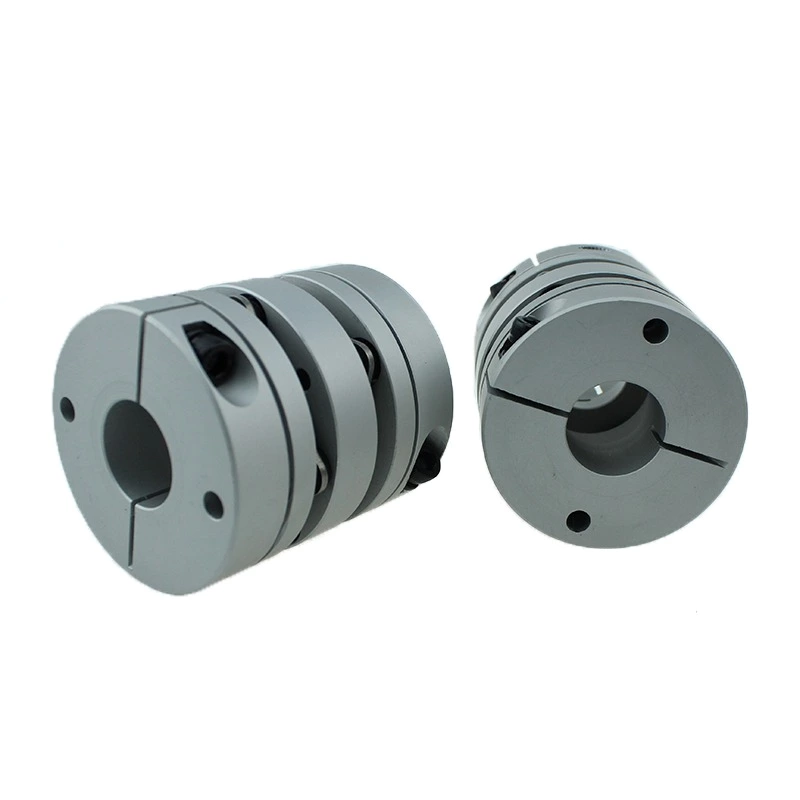

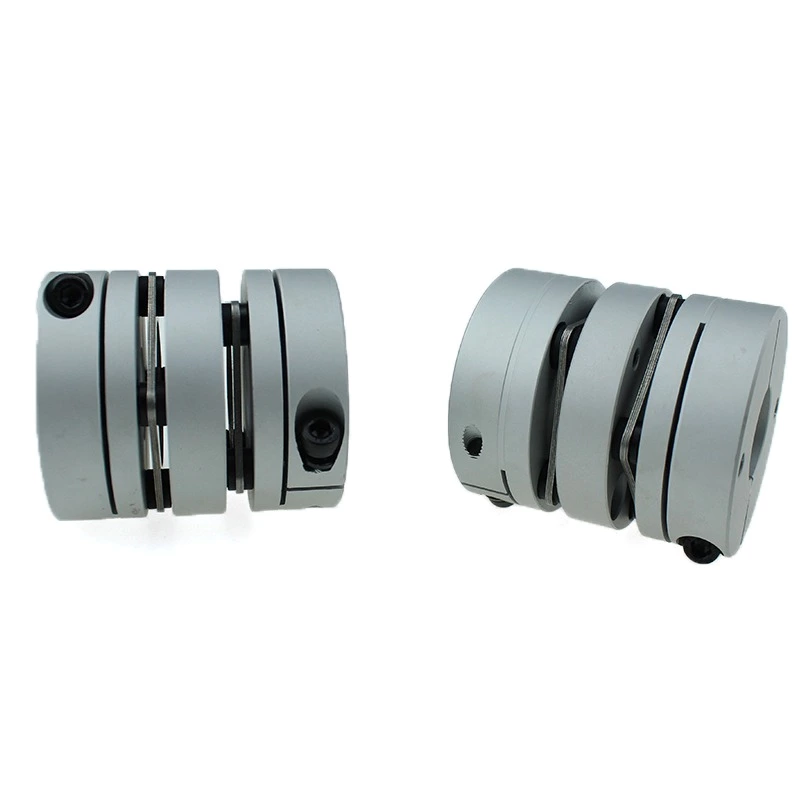

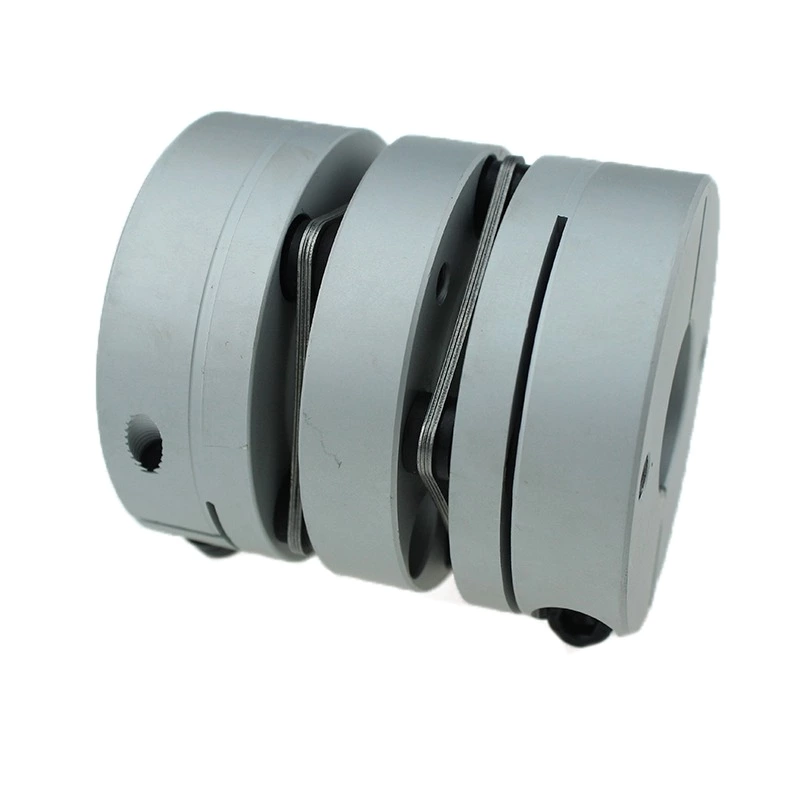

flexible stainless steel encoder coupling
Features
-
spring type flexible coupling.
-
Short length, light volume.
-
double group of stainless steel shrapnel admissible eccentricity, axial deviation angle and.
-
clockwise and anticlockwise rotation the same characteristic.
-
It ends with different aperture product standardization.

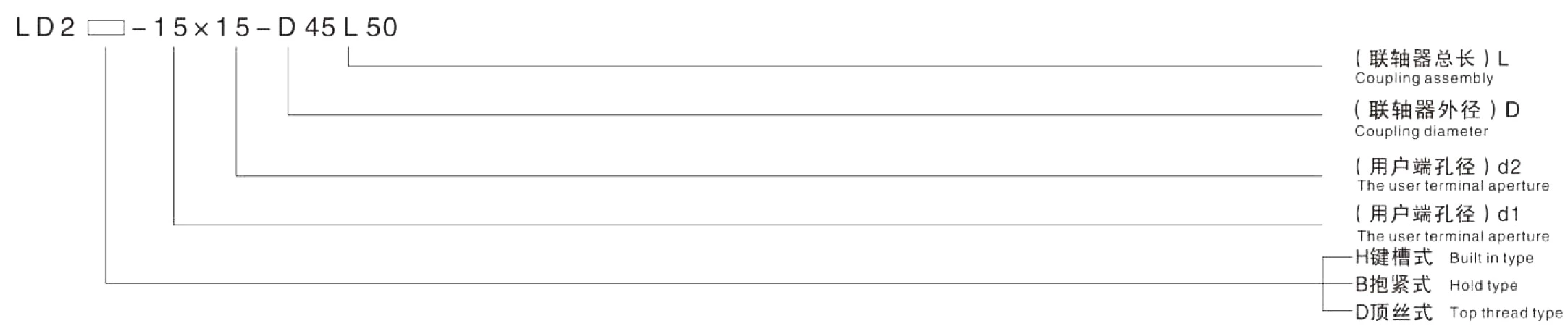

Technical Specifications
| Project type | d1 Bore | d2 Bore | D | L | L1 | M | Rated torque | Maximum torque | The eccentric error | Shaft angle | The highest speed | Work |
| LD2 | 4-12 | 26 | 35 | 3 | M2.5 | 8N.M | 15N.M | ±0.2mm | ≤2.5° | 12000 | Synchronous operation | |
| 5-12 | 34 | 45 | 5 | M3-4 | 10N.M | 18N.M | ±0.2mm | ≤2.5° | 12000 | |||
| 6-20 | 40 | 50 | 5.5 | M3-4 | 12N.M | 20N.M | ±0.2mm | ≤2.5° | 12000 | |||
| 6-20 | 45 | 50 | 5.5 | M3-4 | 14N.M | 22N.M | ±0.2mm | ≤2.5° | 12000 | |||
| 6-22 | 56 | 63 | 6.5 | M4-6 | 15N.M | 25N.M | ±0.2mm | ≤2.5° | 12000 | |||
| 10-25 | 68 | 74 | 7.5 | M4-6 | 15N.M | 30N.M | ±0.2mm | ≤2.5° | 12000 | |||
| 12-35 | 84 | 98 | 10.5 | M4-8 | 30N.M | 50N.M | ±0.2mm | ≤2.5° | 12000 | |||

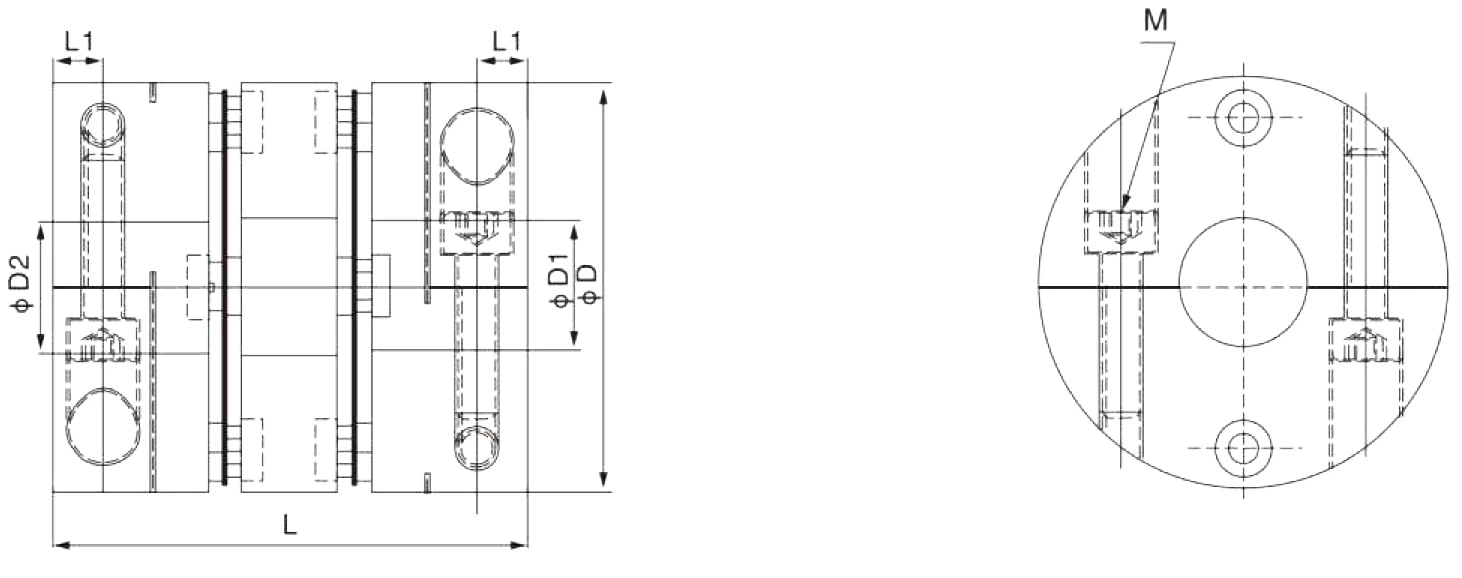

Mechanical Dimensions(mm)
